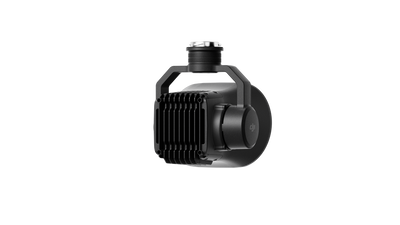

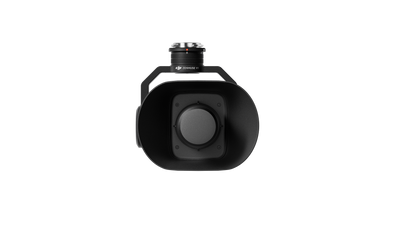

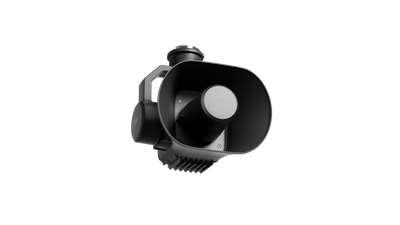

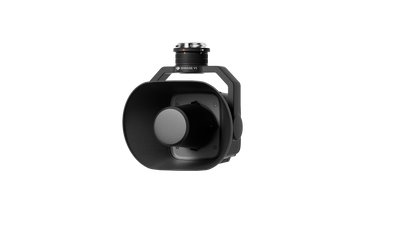

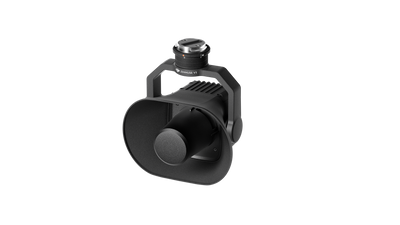

DJI Zenmuse V1 Speaker

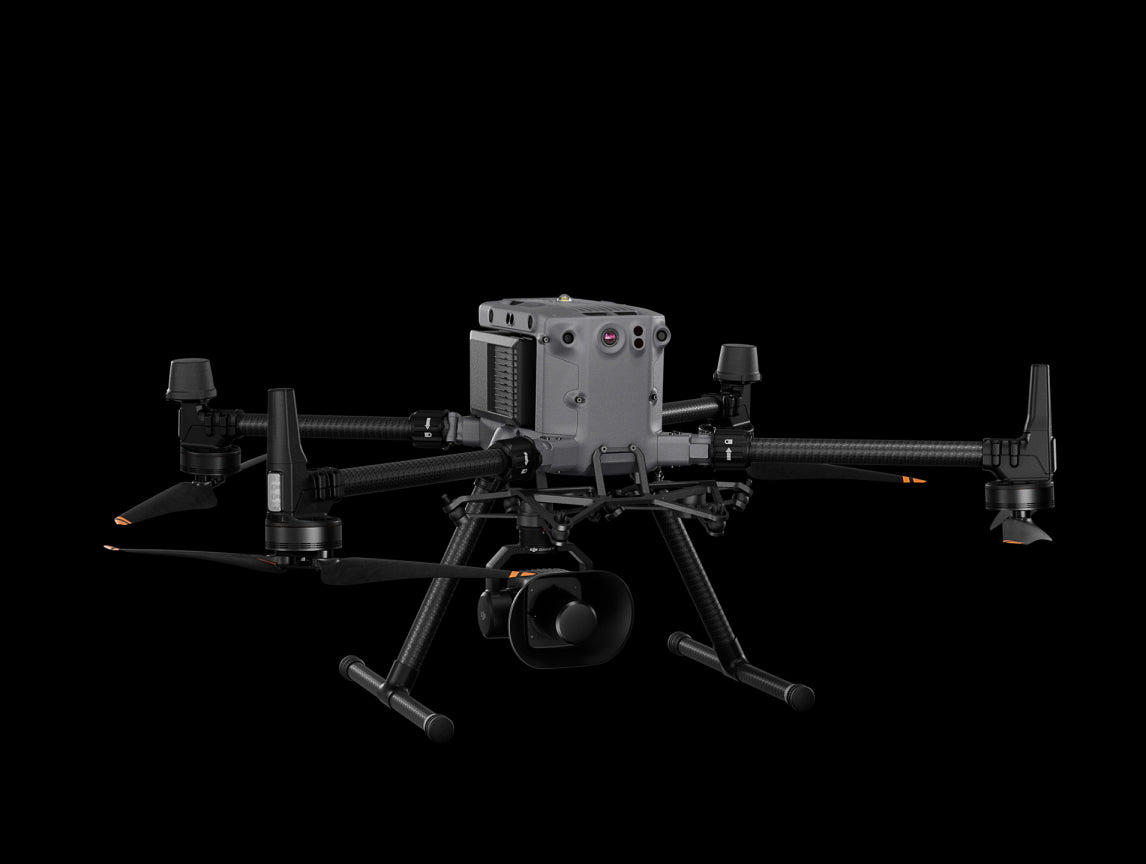

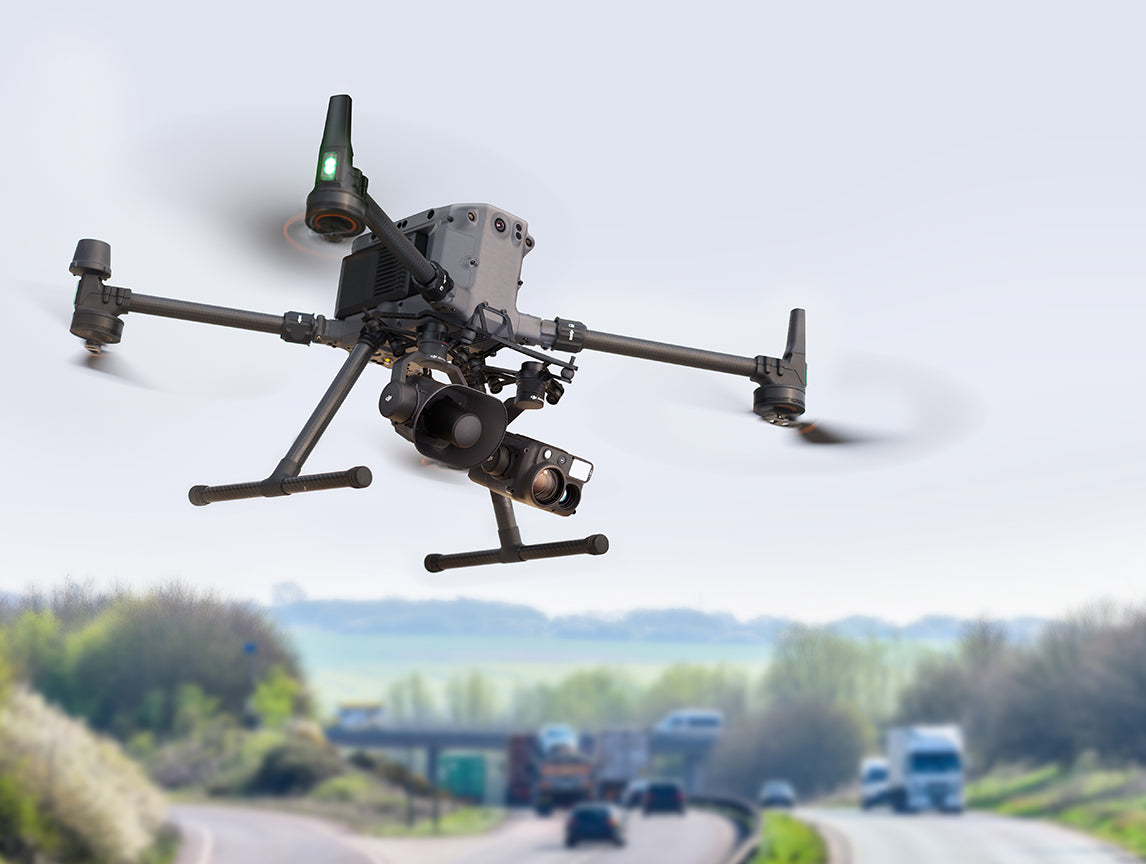

The DJI Zenmuse V1 is a professional-grade loudspeaker payload for the Matrice 400 RTK, Matrice 350 RTK, and Matrice 300 RTK. Installed on the DJI SKYPORT mount, it flies alongside camera or spotlight payloads for simultaneous broadcast and imaging in a single flight. On the Matrice 400 RTK, the V1 delivers 129 dB at 1 meter and an effective broadcast distance of 700 meters -- enough to give clear instructions to crowds, guide subjects during SAR operations, or issue deterrent warnings during law enforcement responses. Three broadcast modes -- live voice, text-to-speech, and audio file playback (MP3, AAC, WAV) -- are managed through DJI Pilot 2 with no additional hardware. An integrated anti-howling algorithm maintains clarity during live broadcast at altitude.

Zenmuse V1 Specifications

Mission Applications

• Search and rescue: 700m broadcast range on M400 reaches subjects at long standoff distances; pre-recorded TTS messages play while the pilot focuses on navigation
• Public safety and law enforcement: Live voice for real-time commands; deterrent warnings from altitude without ground personnel entering active scenes
• Emergency management: Community announcements, evacuation instructions, and traffic guidance during disasters or large-scale events
• Paired with Zenmuse S1: Mount alongside the S1 spotlight on M400 for simultaneous illumination and broadcast during night operations

Product Video

Frequently Asked Questions

Which drone platforms are compatible with the Zenmuse V1?

Matrice 400 RTK, Matrice 350 RTK, and Matrice 300 RTK. Note: only compatible with the DJI RC Plus remote controller. Ensure drone and controller firmware are updated before use.

Which gimbal connector can the Zenmuse V1 be mounted on?

Any gimbal connector on the Matrice 400 RTK, Matrice 350 RTK, or Matrice 300 RTK. The V1 supports single upward gimbal, dual downward gimbal, and flexible mounting for multi-payload configurations. The gimbal port protection cap is included as a protective accessory.

What is the IP rating?

IP54, suitable for operation in rain, dust, and harsh environments. Tested per IEC60529 at 25°C. IP rating may degrade over time with wear.

What is the maximum sound pressure level?

129 dB at 1 meter when used with Matrice 400 RTK; 127 dB at 1 meter with Matrice 350/300 RTK. Measured in lab conditions at 25°C. Results may vary depending on software version and environment.

What is the effective broadcast distance?

700 meters with Matrice 400 RTK; 500 meters with Matrice 350/300 RTK. Measured in lab conditions at 25°C. Actual performance varies with environmental conditions.

What broadcast modes are supported?

Live voice, text-to-speech (English and Mandarin Chinese), and audio file playback (MP3, AAC, WAV). All managed through DJI Pilot 2. Loop playback and local recording are also available.

What precautions should be taken?

1. When used alongside Zenmuse H20/H30 cameras, zoomed footage at 35x and above may experience shaking. Reduce speaker volume or adjust gimbal angle to below -60° to improve image stability.
2. Store in a secure, dry, well-ventilated case. Recommended humidity: 40-50%.
