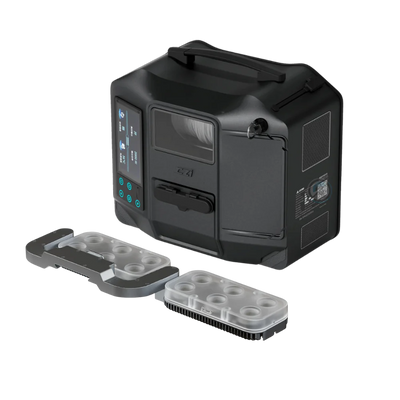

CZI TK3 Tethered Power System with ML200 Matrix Light Bundle

The CZI TK3 Tethered Power System with ML200 Matrix Light Bundle combines two of CZI's most capable mission systems into a single package designed for sustained, high-intensity nighttime operations with the DJI Matrice 30 and Matrice 30T. The TK3 tethered power system eliminates battery limitations entirely, providing continuous 400V DC output from a standard 220V AC ground connection through an 80-meter tether cable. The included ML200 Matrix Light delivers high-output wide-area illumination powered directly from the tether, enabling continuous lighting operations that simply cannot be achieved with battery-powered payloads.

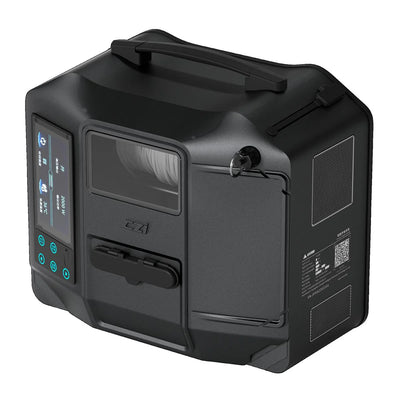

The TK3 converts AC mains power into 400V high-voltage DC through a 7.5 kg ground terminal, transmitting it to the aircraft via a 2.8mm diameter nickel alloy cable that weighs just 12 grams per meter. The sky-end receiver for the M30 weighs 320 grams and outputs up to 1,500W to the drone and its payloads. Combined with the ML200 Matrix Light, this system enables 24-hour uninterrupted operations for extended perimeter security, disaster response, search and rescue across large terrain, and high-value asset protection where battery rotations would interrupt coverage.

This bundle removes the most significant limitation of drone-based illumination operations: endurance. At 14,499 dollars, it is a systems investment for agencies and operations centers that have moved beyond hourly battery cycles and need guaranteed coverage windows measured in hours, not minutes.

• Compatible drones: DJI Matrice 30, Matrice 30T
• Ground terminal power input: 220V AC
• Sky-end output (M30): up to 1,500 W
• Tether length: 80 m maximum
• Tether diameter: under 2.8 mm, 12 g/m
• Ground terminal weight: 7.5 kg
• Sky-end weight (M30): 320 g
• Included: TK3 tethered power system and ML200 Matrix Light
• Operation: continuous 24-hour flight capability
