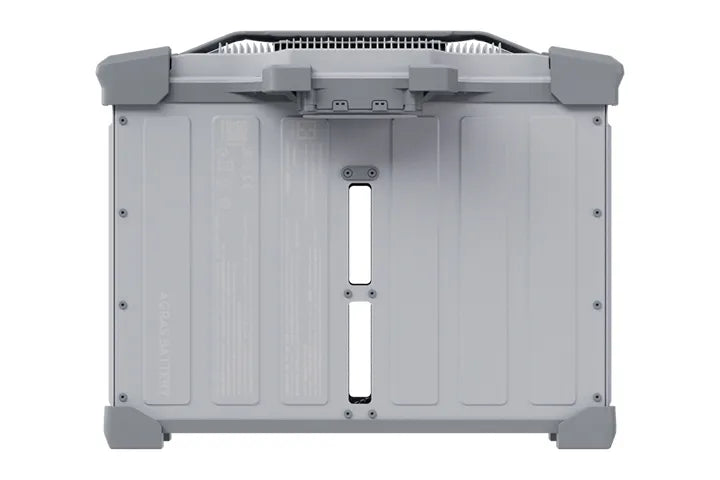

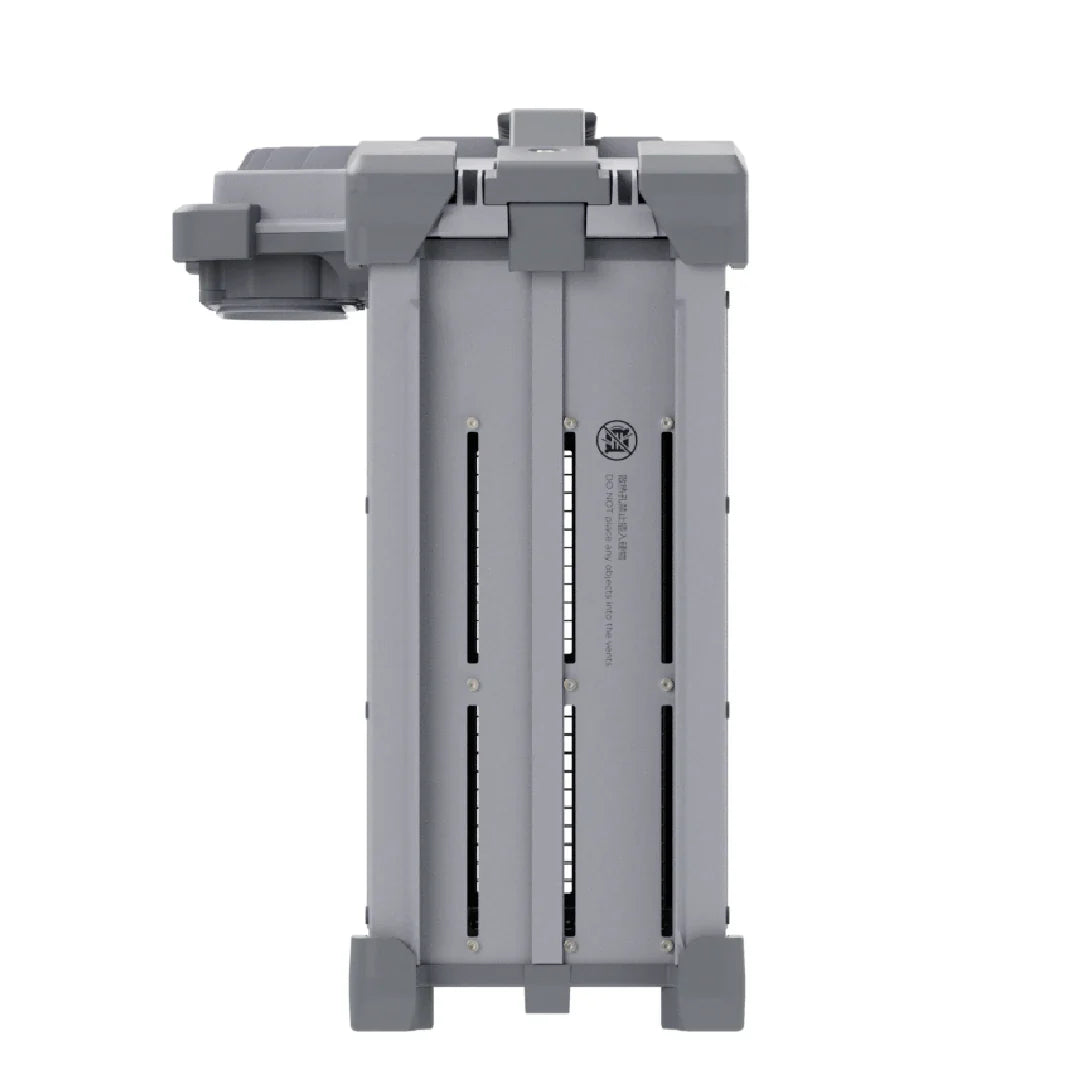

DJI DB2160 Intelligent Flight Battery - High-Capacity Power for Agras T100

Keep your operation in the air and your downtime to a minimum with the DJI DB2160 Intelligent Flight Battery. Engineered specifically for the heavy-lift demands of the DJI Agras T100 and T70P, this 41,000 mAh powerhouse is the most advanced energy solution in DJI’s agricultural lineup. With its specialized triple air-channel cooling system and rapid-charge architecture, the DB2160 is built to handle high-ambient temperatures and the grueling duty cycles of peak spraying season.

Optimized for Rapid Field Turnaround

The DB2160 is designed for a seamless three-battery rotation. When paired with the C12000 Intelligent Power Supply, this battery can charge from 30% to 95% in as little as 9 minutes. This ultra-fast replenishment allows a single pilot to maintain continuous flight operations without waiting for batteries to cool or charge, effectively doubling your daily acreage capacity compared to previous generation systems.

Advanced Thermal Management and Durability

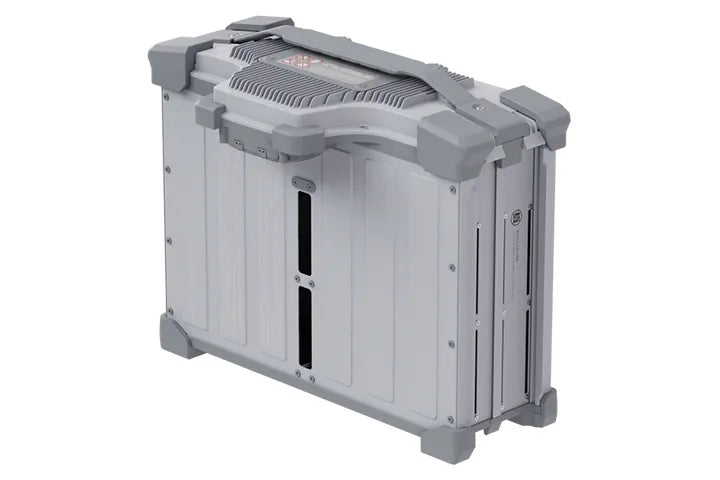

Agricultural environments are notoriously harsh on lithium batteries. The DB2160 addresses this with a rugged, weather-resistant outer shell and a 500A high-power connector designed for thousands of insertions. Internally, the triple-channel cooling system ensures that heat is dissipated during both high-discharge flights and high-amperage charging. This thermal stability is why DJI backs the DB2160 with a 1,500-cycle warranty, providing long-term reliability and a lower cost-per-flight for your business.

Intelligent Monitoring and Safety

Each DB2160 battery features an integrated Battery Management System (BMS) that communicates directly with the DJI Agriculture app. Pilots can monitor real-time cell voltage, temperature, and overall health directly from the RC Plus 2 remote. The battery also includes self-protection features against over-charging, over-discharging, and short-circuiting, ensuring that your power source remains stable even in the most demanding field conditions.

Technical Specifications

• Model: DB2160

• Capacity: 41,000 mAh (41 Ah)

• Nominal Voltage: 52 V

• Energy: 2,132 Wh

• Weight: Approx. 14.7 kg (32.4 lbs)

• Charge Time: 9 - 11 Minutes (30% to 95% via C12000)

• Cycle Life: Up to 1,500 Charge Cycles (Warranty Protected)

• Cooling: Triple Air-Channel Active Cooling

• Compatibility: DJI Agras T100, DJI Agras T70P

• Connector: 500A High-Power Quick-Connect

• Operating Temperature: 0°C to 45°C (32°F to 113°F)

DJI DB2160 Battery FAQ

How many DB2160 batteries do I need for a continuous operation?

For most commercial spraying operations, a 3-battery rotation is ideal. This allows one battery in the air, one cooling in the station, and one on the C12000 charger, ensuring you never have to pause for a charge.

Can I charge the DB2160 with an older T40 or T50 charger?

The DB2160 uses a high-power connector specific to the T100 ecosystem. While it can be charged using the older C10000 charger via a specialized adapter cable, it is highly recommended to use the C12000 Intelligent Power Supply to achieve the 9-minute rapid charge rate.

How long does a single DB2160 battery last in flight?

Flight time varies based on payload. On a full 100 kg spray load, expect 9 - 13 minutes of flight. When empty or performing mapping missions, the DB2160 can provide up to 23 minutes of airtime.

What does the 1,500-cycle warranty actually cover?

DJI guarantees the battery for up to 1,500 charge cycles or 12 months, whichever comes first. This is significantly higher than standard consumer batteries, reflecting the professional-grade cells used in the DB2160.

Is it safe to charge the battery immediately after a flight?

Yes, provided you use the Battery Cooling Station or the C12000’s integrated cooling features. The DB2160 is designed to handle "hot swaps," but active cooling is required to maintain the 9-minute charge efficiency and protect the cell lifespan.
