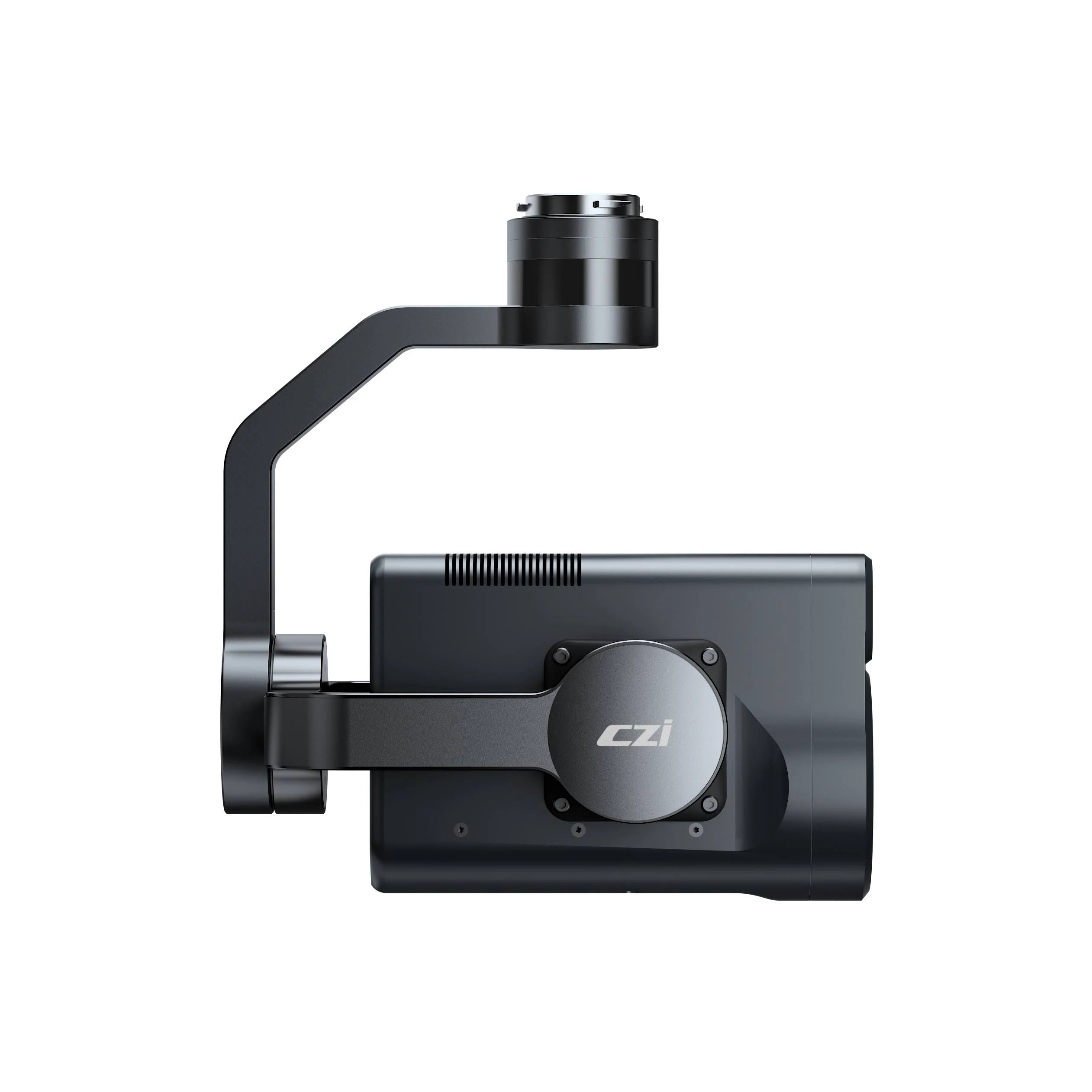

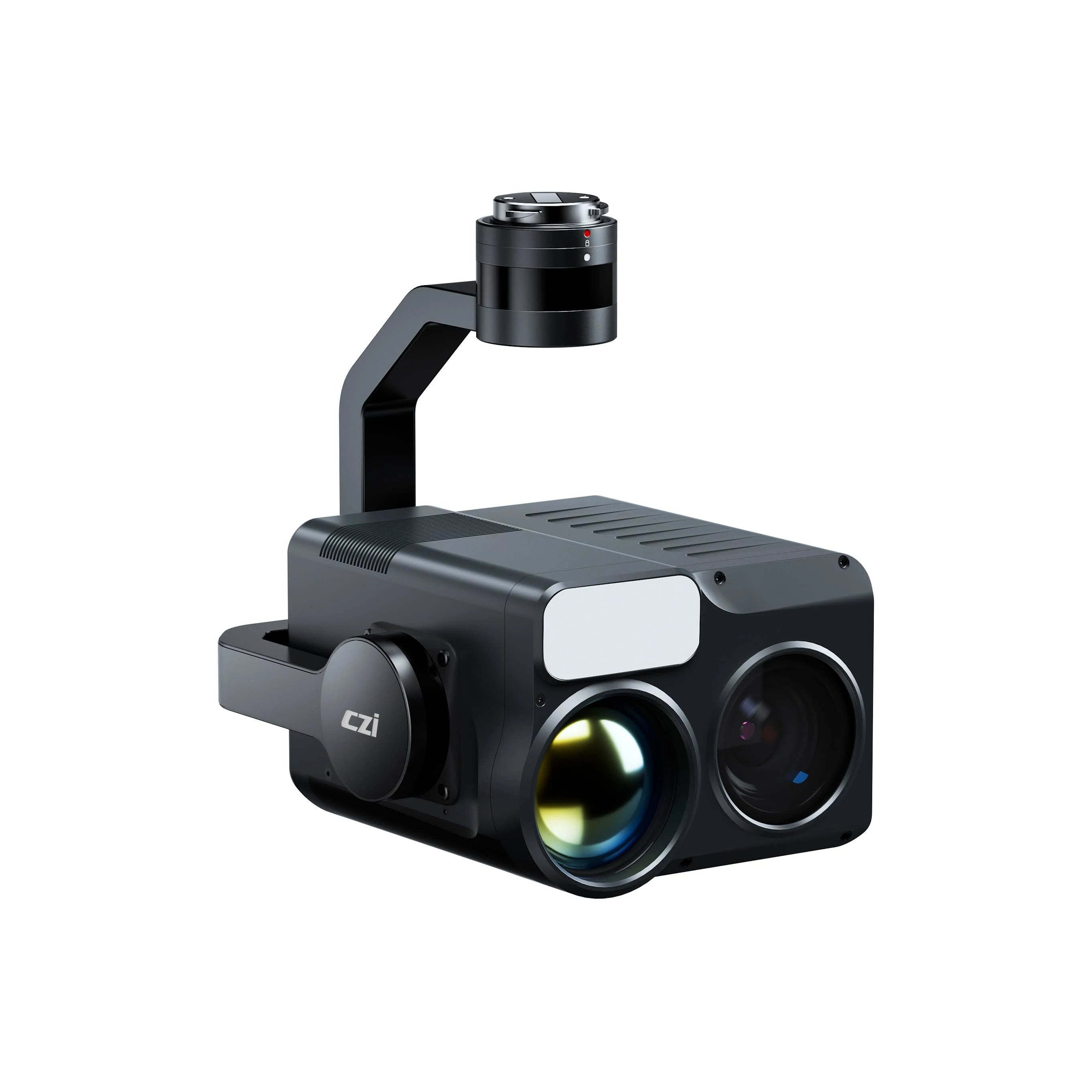

CZI C30N Camera

Product Description:

The CZI C30N Night Vision Camera is a high-performance surveillance system designed for seamless compatibility with the DJI Matrice 300 & 350 RTK, delivering exceptional clarity and precision for day and night operations. Equipped with high-resolution thermal and visible light cameras, the C30N provides long-range detection, intelligent tracking, and superior imaging performance, making it ideal for public safety, law enforcement, search and rescue, and industrial inspections.

Advanced Thermal Imaging:

• 4x High-Resolution Thermal Cameras – Captures ultra-clear thermal imagery for enhanced situational awareness.

• 55mm Thermal Camera with 1280 Resolution – Delivers twice the clarity of industry-standard thermal cameras.

• 1,000m Human Detection Range – Accurately identifies heat signatures from long distances.

• 10 Pre-Set Thermal-to-True Color Palettes – Customizable imaging modes for optimal visibility in various conditions.

Ultra Vision Visible Light Camera:

• 30x Optical Zoom in Full HD – Provides crisp details at long focal lengths, equivalent to 955mm.

• Infrared Spotlight with 400m Range – Enhances low-light and nighttime visibility for improved surveillance.
• Optimized for Night Vision Mode – Works in tandem with the visible light camera to maximize illumination.

Precision Stabilization & AI Integration:

• 3-Axis Enhanced Gimbal Stabilization – Eliminates camera shake, ensuring smooth, high-precision imaging.

• Nvidia AI Chip with 21 TOPS Algorithms – Enables advanced image processing, object detection, and intelligent tracking.

• Dual Laser System – Provides improved accuracy for long-range surveillance and targeting.

Environmental Adaptability:

Mist Elimination Technology – Integrated heating control components automatically remove lens fog for clear imaging in extreme conditions.
Built for All-Weather Operations – Engineered to withstand harsh environments while maintaining high-resolution imaging performance.

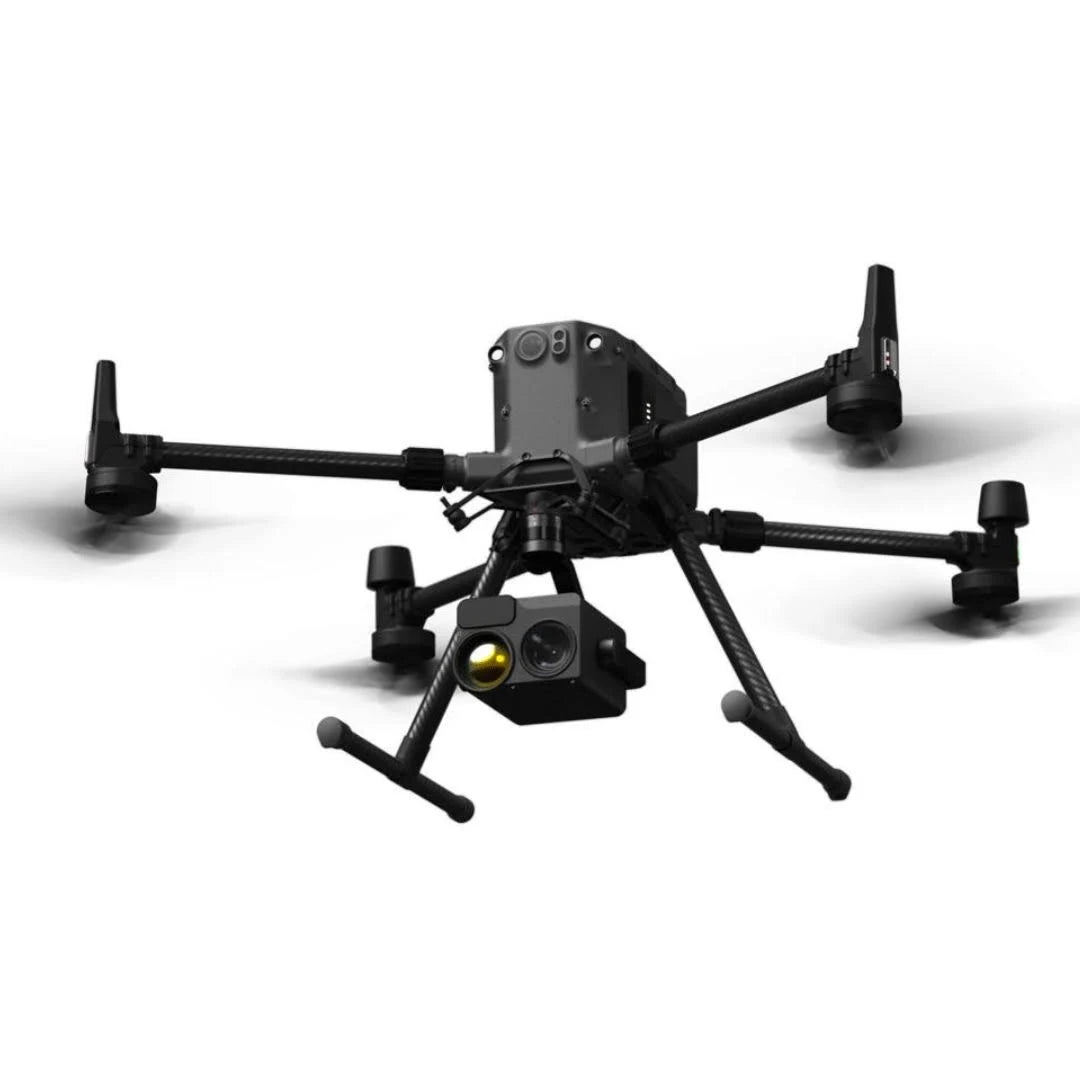

Seamless Integration with DJI Matrice 350 RTK:

The CZI C30N Night Vision Camera is fully compatible with the DJI Matrice 350 RTK, ensuring easy installation, seamless data transmission, and precise control via the DJI Pilot app. This integration allows operators to leverage the drone’s advanced flight capabilities for enhanced situational awareness, search and rescue missions, and critical surveillance tasks.

With industry-leading imaging technology, AI-driven enhancements, and unmatched night vision capabilities, the CZI C30N Night Vision Camera is the ultimate surveillance solution for security, public safety, and defense applications.

Product Video:

Product Specs:

Overall Parameters

• Model: C30N

• Compatible Platforms: DJI Matrice 300 RTK / Matrice 350 RTK / Other Manufacturers

• Weight: <1510 g ±1%

• Dimensions: 173 × 152 × 191 mm

• Gimbal Type: High-precision three-axis stabilizing gimbal

• Installation Method: Detachable

• Gimbal Bumping Accuracy: ±0.01°

Zoom Camera

• Effective Pixels: 4 Megapixels

• Focal Length: 6.5–162.5 mm (Equivalent to 31.85–796 mm)

• Aperture: f/1.6 – f/14

• Lens Diameter: Φ56 mm

• Image Sensor: 1/1.8" CMOS

• Video Resolution: 1920 × 1080 @ 30fps

• Digital Focus Zoom: 4x, 8x, 16x, 32x

Infrared Imaging

• Color Palettes:
  White Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2, Tint, Black Hot

IR Spotlight

• Wavelength: 850 nm

• Effective Distance: >400 m

Laser Rangefinder

• Effective Distance: 10–1200 m

• Wavelength: 905 nm

Storage

• Supported File System: exFAT

• Supported Card Type: UHS-I Speed Grade 3 microSD (up to 128 GB)

AI Processing Power

• Hashrate: 21 TOPS

User Manual:
