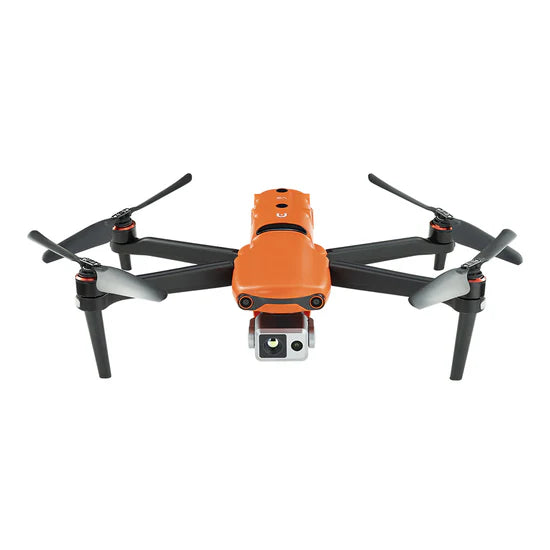

Autel Robotics EVO II Dual 640T Rugged Bundle V3 Drone

The Autel Robotics EVO II Dual 640T Rugged Bundle V3 is a dual-sensor thermal platform built for inspection, public safety, and search-and-rescue operations. The combination of a 640×512 radiometric thermal sensor and a 50MP visual camera — running simultaneously in Picture-in-Picture mode — means you're capturing actionable data from both channels in a single pass, rather than toggling between sensors or flying the same route twice with different payloads.

At $4,799, it delivers 640×512 thermal resolution and full radiometric temperature measurement at a price that is significantly below comparable DJI thermal options. Level 8 wind resistance and 19-sensor omnidirectional obstacle avoidance make it capable in the field conditions where thermal work actually happens. The rugged case and built-in 7.9-inch Smart Controller V3 complete a self-contained kit that's ready to deploy without additional purchases.

Full Specifications

Specification	Value
Thermal Sensor	640 × 512 uncooled VOx microbolometer
Thermal Lens	13mm
Thermal Frame Rate	30Hz
Thermal Color Palettes	10 (White Hot, Black Hot, Iron, Rainbow, and more)
Thermal Digital Zoom	Up to 16×
Radiometric Temperature Measurement	Yes — via Autel IR PC TOOL software
Visual Camera	50MP, 1/1.28-inch CMOS
Picture-in-Picture Mode	Yes — simultaneous thermal + visual
Max Flight Time	38 minutes
Wind Resistance	Level 8
Obstacle Avoidance	360° omnidirectional — 19 sensors
Subject Tracking	Dynamic Track 2.1
Controller	Smart Controller V3 — 7.9-inch ultra-bright touchscreen
Transmission Range	SkyLink 2.0 — up to 12km (FCC) / 5km (CE)
Internal Storage	8GB
Carry Case	Rugged hard case included
Price	$4,799

The Dual-Sensor Payload: 640×512 Thermal + 50MP Visual

A 640×512 thermal sensor — 327,680 pixels — is the meaningful resolution threshold for professional thermal imaging work. Entry-level thermal drones typically ship with 160×120 or 320×240 sensors; those are adequate for gross heat detection but fall apart when you need to locate a specific hotspot in a complex scene or document findings for a client report. At 640×512 you get enough spatial detail to identify individual failing cells in a solar array, locate a person in dense brush at altitude, or map temperature differentials across a rooftop with enough granularity to pinpoint insulation failure.

The radiometric capability — accessed via Autel's IR PC TOOL desktop software — takes the sensor further. A non-radiometric thermal camera shows you a heat image: useful for situational awareness, but pixel values don't correspond to calibrated temperature data. A radiometric camera stores actual temperature measurements for every pixel in every frame. Post-flight, you can pull up any image, click any point, and get a calibrated temperature reading. For solar panel inspections, electrical surveys, and structural assessments that go into an insurance or compliance report, radiometric data is the difference between a picture and a measurement.

The 50MP visual camera runs in parallel. Picture-in-Picture mode overlays the thermal feed within the visual feed on the Smart Controller's 7.9-inch screen in real time. In the field, a thermal anomaly without visual context is frequently ambiguous — PiP lets you see the heat signature and the physical structure causing it simultaneously, making scene interpretation faster and reducing false positives. The 30Hz frame rate keeps the thermal feed smooth during dynamic operations like subject tracking or vehicle following.

Flight Performance and Field Durability

Thirty-eight minutes of flight time is enough to complete a full structure inspection, cover a meaningful search grid, or run a solar array survey without interruption for most use cases. Level 8 wind resistance handles the adverse conditions that field thermal work often encounters — post-storm surveys, coastal inspections with sustained sea breezes, wildfire perimeter assessments in active wind events. The 19-sensor omnidirectional obstacle avoidance covers all six directions, providing protection during lateral maneuvers around structures and infrastructure, not just straight-ahead flight.

Dynamic Track 2.1 enables autonomous subject tracking — useful for SAR target acquisition, wildlife monitoring, or follow operations where the pilot needs to manage sensor settings rather than stick inputs. The rugged hard case handles transport in vehicles, trucks, and field packs without requiring separate pelican case purchases.

Use Cases

Infrastructure Inspection — Electrical and Solar

Transmission lines, substations, and solar arrays are core thermal drone applications. The 640T's radiometric capability produces per-pixel temperature data that meets the documentation standards for insurance claims, maintenance work orders, and regulatory compliance filings. For solar operators, this sensor at altitude can identify hotspot cells, bypass diode failures, and soiling patterns across hundreds of panels in a single flight. The 38-minute flight time and 12km range support large-site surveys without constant repositioning.

Public Safety and Search & Rescue

Thermal imaging is a force multiplier for SAR operations — the sensor detects human heat signatures in conditions where visible cameras are blind. The 640×512 resolution gives teams enough detail to distinguish body position and distinguish true subjects from false positives at altitude. PiP mode gives ground coordinators visual context around every thermal contact for faster, more accurate radio calls. Level 8 wind resistance and the rugged case support the field conditions and transport realities of SAR callouts.

Building Envelope and Rooftop Surveys

HVAC professionals, building inspectors, and energy auditors use thermal drones to find insulation gaps, moisture intrusion, and HVAC failures without scaffolding. The 640T's radiometric data integrates with reporting software to generate temperature-accurate deliverables. A full commercial rooftop survey on a single charge is realistic for most building footprints.

Wildfire and Fire Department Operations

The 30Hz thermal feed stays smooth during active fire approach; Level 8 wind resistance handles convective airflow at altitude near structure fires; and the radiometric data supports the post-incident hotspot documentation used in fire investigation and insurance reporting.

EVO II Dual 640T vs. DJI Mavic 3T

Feature	Autel EVO II Dual 640T V3	DJI Mavic 3T
Price	$4,799	$6,700
Thermal Resolution	640 × 512	640 × 512
Radiometric	Yes	Yes
Max Flight Time	38 min	45 min
Wind Resistance	Level 8	Level 7 (IP43)
Obstacle Avoidance	360° — 19 sensors	Omnidirectional
Rugged Case Included	✓ Yes	Separate purchase
Controller Display	7.9-inch built-in	Separate purchase

Frequently Asked Questions

Can I measure actual temperatures with this drone?

Yes. The EVO II Dual 640T is a fully radiometric thermal camera — every frame stores per-pixel temperature data, not just relative heat values. Post-flight analysis is done through Autel's IR PC TOOL desktop software, where you can extract point temperatures, define measurement areas, set thresholds, and generate inspection reports from the radiometric data.

How does the 640×512 thermal resolution compare to other drones?

640×512 is the professional-grade threshold for thermal imaging work. It's the same resolution class as the DJI Mavic 3T ($6,700) and DJI Matrice 4T ($7,849). Entry-level thermal drones typically ship with 320×240 or lower, which produces usable heat maps but lacks the spatial detail needed for precise hotspot identification or professional inspection deliverables. At 640×512, you can identify individual failing solar cells, distinguish people from ambient heat sources in cluttered environments, and document findings with enough detail for client reports.

What does Picture-in-Picture mode do?

PiP mode displays the thermal feed overlaid within the visual camera feed simultaneously on the Smart Controller's 7.9-inch screen. You see both channels at once during flight without toggling. In the field, this means you can identify a thermal anomaly and simultaneously see the physical context — which structure, which component, which location — without switching views. It significantly speeds up scene interpretation and reduces ambiguous contacts.

Is this drone suitable for night operations?

Yes — thermal imaging works in complete darkness. The sensor detects infrared radiation based on object temperature, independent of visible light. The EVO II Dual 640T operates identically at night as during the day on the thermal channel. The visual camera requires ambient light for usable imagery, but in PiP mode during nighttime missions, thermal is typically the primary sensor with visual providing contextual reference where lighting allows.

What's included in the Rugged Bundle?

The Rugged Bundle V3 includes: EVO II Dual 640T drone, Smart Controller V3 (7.9-inch touchscreen), rugged hard carry case, spare propellers, battery charger with power cable, Smart Controller lanyard, Smart Controller cover, spare joystick, RC charger, RC charger cable, data cable, screwdriver, and Autel Robotics' limited 1-year manufacturer warranty.

What's in the Box

• Autel Robotics EVO II Dual 640T Drone
• Smart Controller V3 (7.9-inch ultra-bright touchscreen)
• Rugged Hard Carry Case
• Spare Propellers
• Battery Charger with Power Cable
• Smart Controller Lanyard
• Smart Controller Cover
• Spare Joystick for Smart Controller
• RC Charger
• RC Charger Cable
• Data Cable
• Screwdriver
• Limited 1-Year Manufacturer Warranty (Autel Robotics)
