ViewPro A30TR-50M Gimbal Camera
Enterprise pricing, payment terms and bulk orders — talk to a drone specialist.

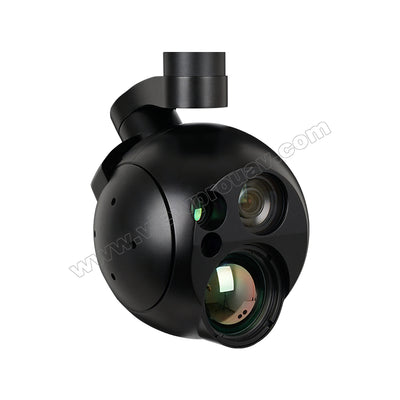

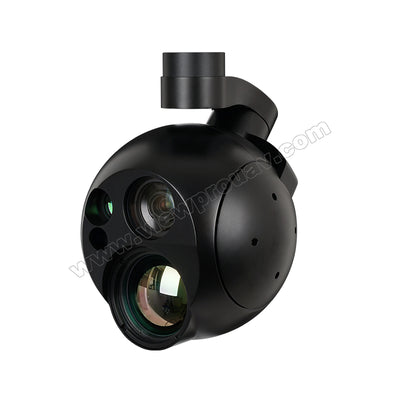

The ViewPro A30TR-50M is ViewPro's most capable tracking payload: everything the A30T-50 offers, plus a precision laser rangefinder. Three sensors work together. The 30x optical zoom EO camera (Sony 1/2.8 inch Exmor R CMOS) identifies and confirms targets at distance, the 50mm 640x512 thermal imager finds heat signatures day or night, and the 1535nm laser rangefinder returns target distance to within about a meter, out to 5 km.
Onboard AI ties it together, automatically detecting and tracking up to ten people and vehicles at once with a detection rate of 85 percent or better. For surveillance, target acquisition, infrastructure inspection, and coordinated response, the A30TR-50M lets a single operator detect, identify, range, and track from meaningful standoff.
Key Specifications
| Spec | Value |
|---|---|
| EO Camera | 30x optical zoom (plus 12x digital), Sony 1/2.8" Exmor R CMOS, 2.13MP, 1080p |
| Thermal Imager | 640x512 resolution, 12 micron pixel pitch, uncooled VOx (8 to 14 micron) |
| Thermal Lens | 50mm long-range detection optics |
| Laser Rangefinder | 1535nm, accuracy ~±1m; building ≥5km, vehicle ~3km, person ~1.5km |
| AI Module | Auto detection and tracking of humans and vehicles, up to 10 targets, ≥85% |
| Gimbal Range | Tilt -45 to +120 deg, Roll +/-45 deg, Pan +/-290 deg |
| Stabilization | 3-axis, +/-0.02 deg (pitch/roll/yaw) |
| Video Output | Micro HDMI (1080p) and IP streaming (RTSP/UDP) |
| Control Interfaces | PWM / TTL / S.BUS / TCP / UDP |
| Storage | TF card up to 128 GB |
| Weight | 1,485 g (Viewport version) |
| Operating Temp | -20 to +60 C; 4S to 6S input |
| Price | $13,988 |
What the A30TR-50M Is Used For
Surveillance and Target Acquisition. Detect with thermal, confirm with 30x EO zoom, and range the target with the 5km laser rangefinder, all from one stabilized payload while AI keeps the subject locked in frame.
Search and Rescue. Long-range thermal sweeps wide corridors; once a heat signature is found, the rangefinder pins its exact distance to coordinate ground teams.
Infrastructure and Power-Line Inspection. Work corridors and industrial sites from standoff, measuring distances to structures and confirming thermal anomalies in a single flight.
Public Safety and Emergency Response. Track up to ten people or vehicles simultaneously during a developing incident, with precise ranging for situational awareness.
Where It Fits in the ViewPro Lineup
The A30TR-50M is the flagship of ViewPro's AI tracking payloads, adding the 5km laser rangefinder on top of the dual-sensor A30T-50 ($10,488). If you do not need EO zoom, the thermal-only AT50 ($4,488) covers long-range thermal at the lowest cost. For the full comparison, read our ViewPro Gimbal Cameras Buyer's Guide.
In the Box
- A30TR-50M gimbal camera (Viewport version)
- Pelican-style protective case
- USB to TTL cable
- Mounting screws and copper cylinders
- Damping balls and damping boards
Integration and Support
The A30TR-50M integrates with enterprise and custom UAV platforms via the Viewport quick-release interface, with PWM, TTL, S.BUS, TCP, and UDP control and micro HDMI or IP video output. Contact us to confirm compatibility with your aircraft, discuss configuration, or arrange volume pricing.
Availability note: This model ships from the manufacturer's Hong Kong stock, which is currently limited (fewer than 180 units across the series). Inventory and lead times are confirmed at the time of order. Request a quote and we will verify current availability within one business day. Note: laser rangefinder payloads may be subject to export and end-use review.
Warranty
1-year manufacturer warranty from delivery, covering quality issues.
