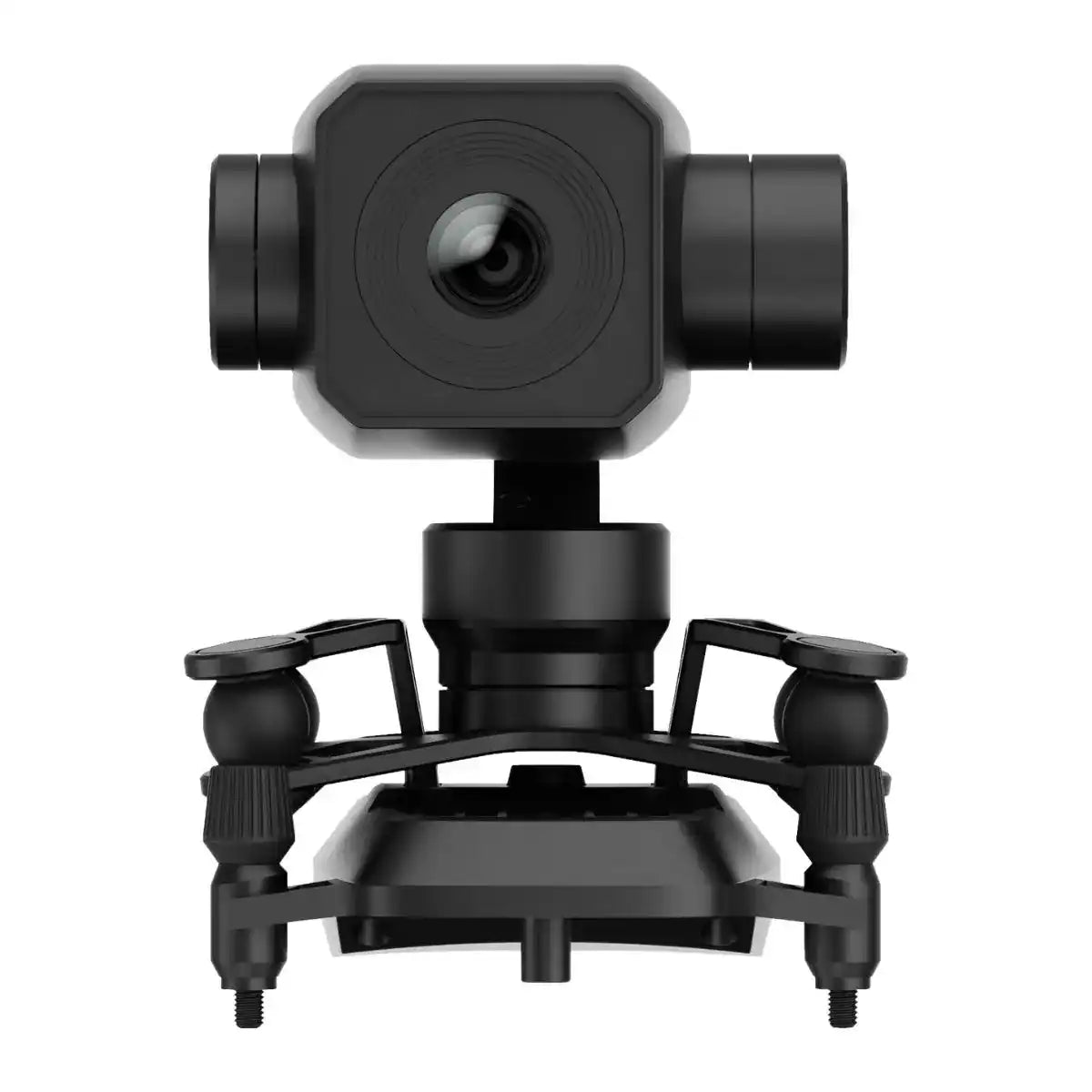

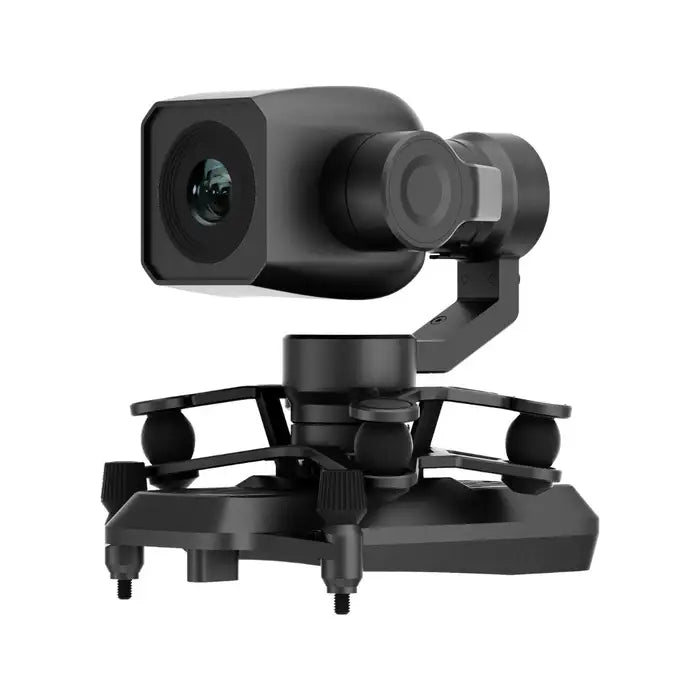

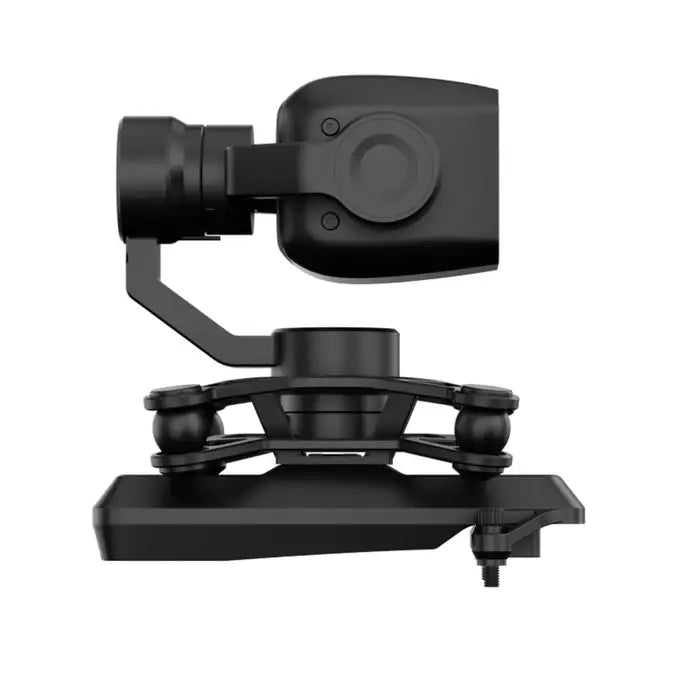

Deepthink S8 Camera

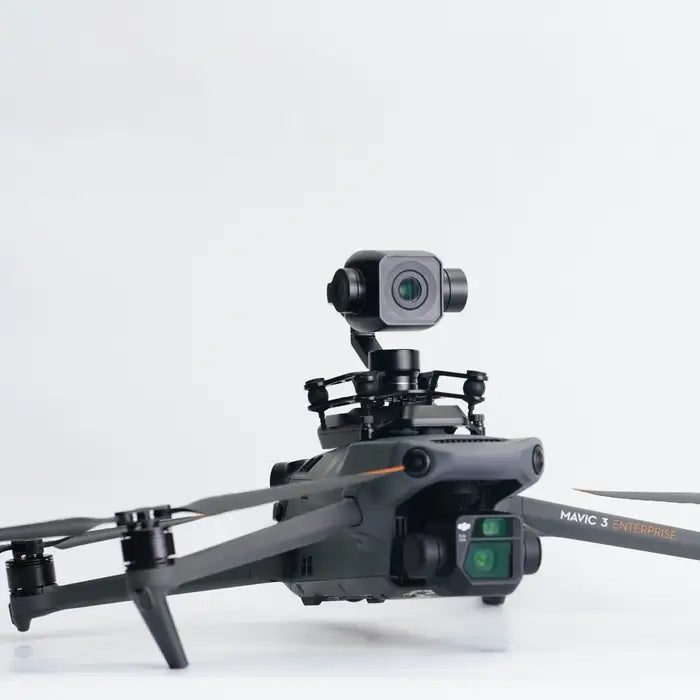

The Deepthink S8 is a compact and powerful gimbal camera designed for night-time aerial operations. Engineered for seamless integration with the DJI Mavic 3E and 3T, it features Deepthink’s proprietary AI-ISP technology to deliver true-color imaging in extremely low light environments, down to 0.0001 lux.

Ideal for public safety, firefighting, search and rescue, bridge inspection, and more, the S8 provides unmatched clarity, stability, and ease of use in critical conditions.

Key Features

• AI-ISP Powered Night Vision: Captures clear, full-color images in near-total darkness using advanced AI features including AI Denoise, AI HDR, and AI Defog.

• Professional Grade Sensor: 1/1.8" CMOS sensor with 2K resolution and 120dB wide dynamic range ensures exceptional image quality in challenging lighting.

• Ultra-Stable Imaging: 3-axis gimbal with stabilization precision of ≤±0.005° for consistently smooth footage.

• Low Power Consumption: Only 3W power draw, supporting the Mavic 3E/3T’s full flight endurance.

• Plug-and-Play Integration: Mounts easily to DJI Mavic 3E/3T via e-port and connects quickly through DJI PSDK.

• Durable and Compact: Operates in temperatures from -20°C to 60°C (-4°F to 140°F) and fits securely without adding bulk.

Technical Specifications

• Sensor: 1/1.8" CMOS

• Resolution: 4MP (2K)

• Frame Rate: 5–30fps

• Focal Length: 15.4mm (equivalent to 74mm)

• Aperture: f/1.6

• Field of View: 33.4° (Diagonal) x 29° (Horizontal) x 16.4° (Vertical)

• Minimum Illumination: 0.0001 Lux

• Dimensions: 94.2 x 71.1 x 90 mm

• Power Consumption: Approximately 3W

Applications

• Public safety

• Firefighting

• Search and rescue

• Survey and mapping

• Water patrol

• Electric utility inspection
