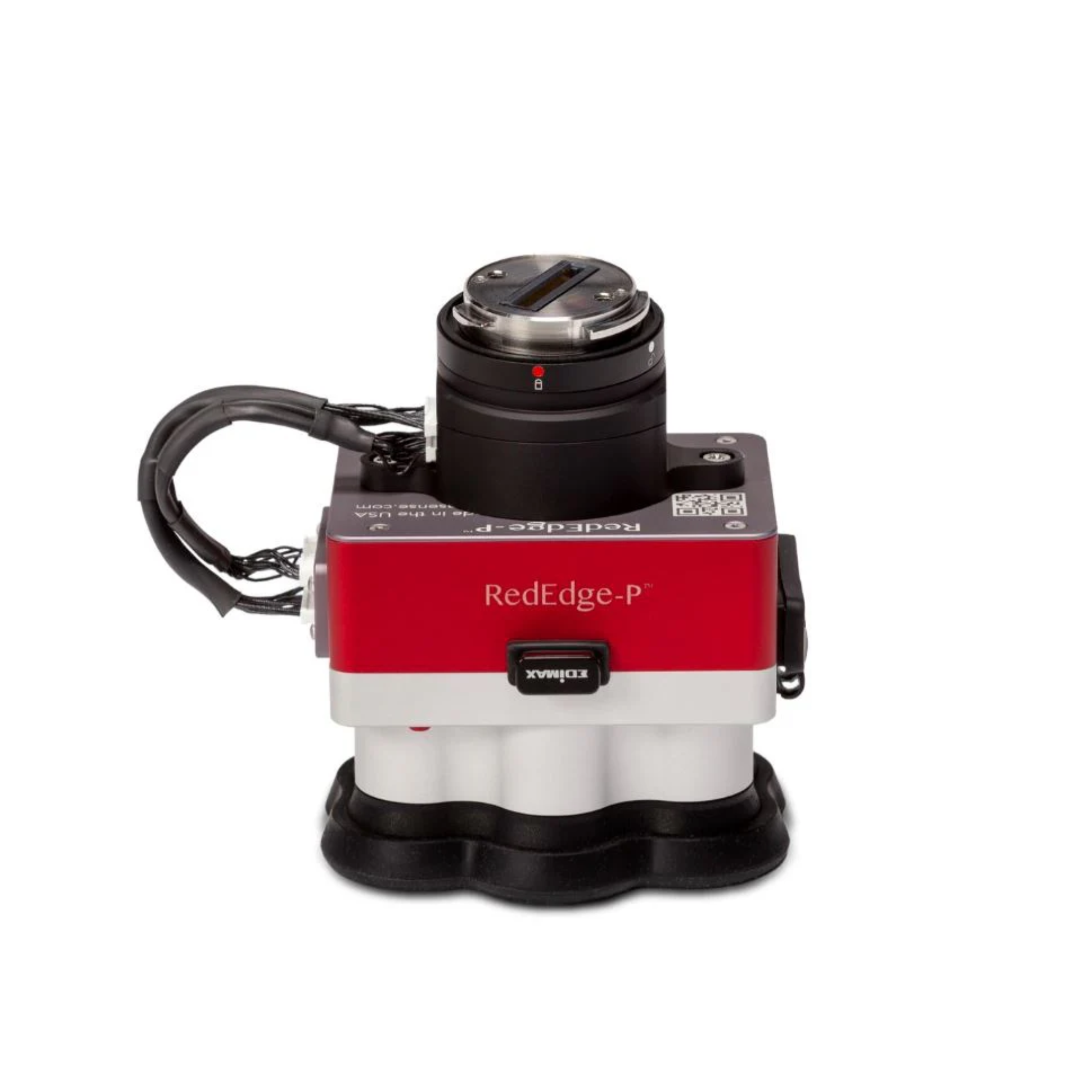

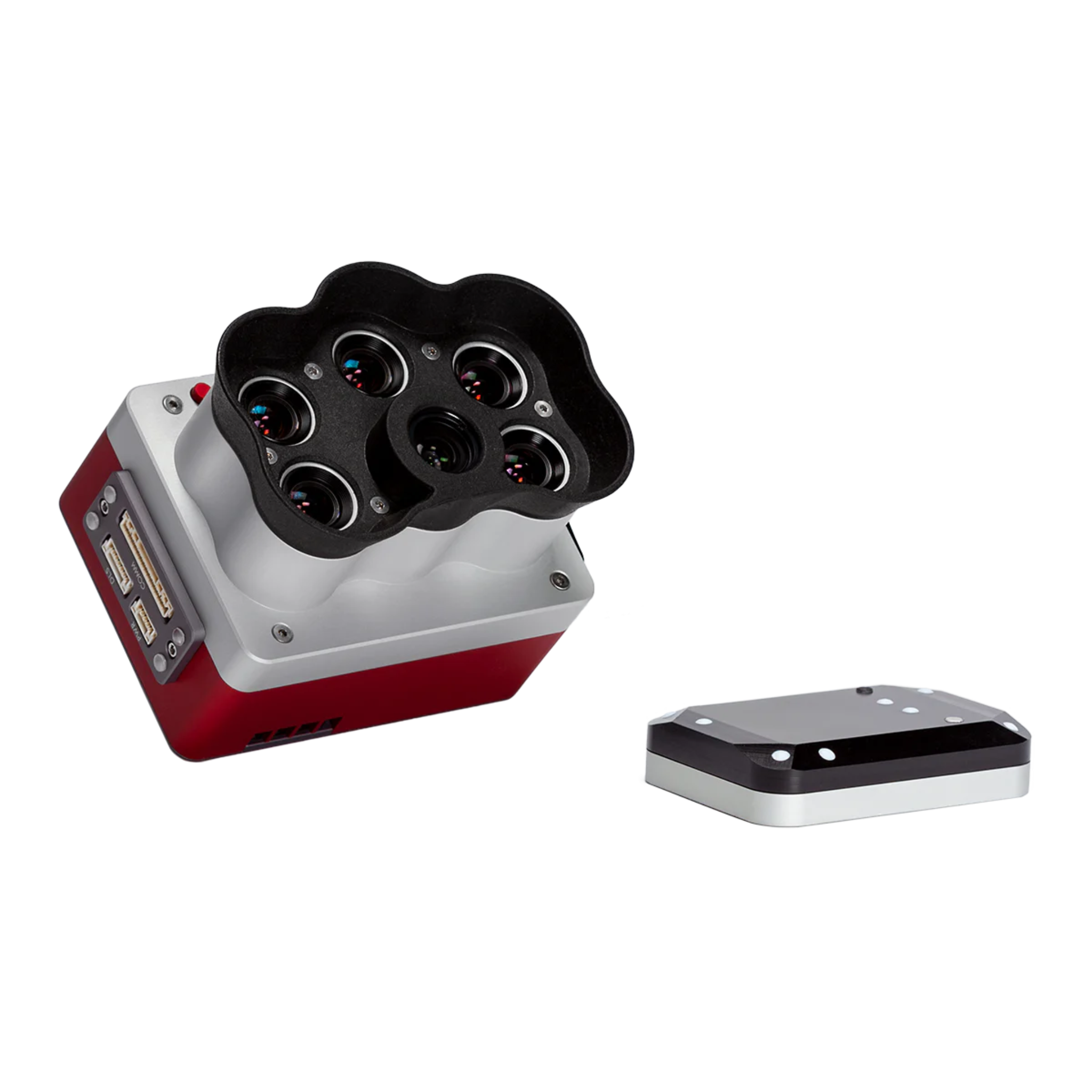

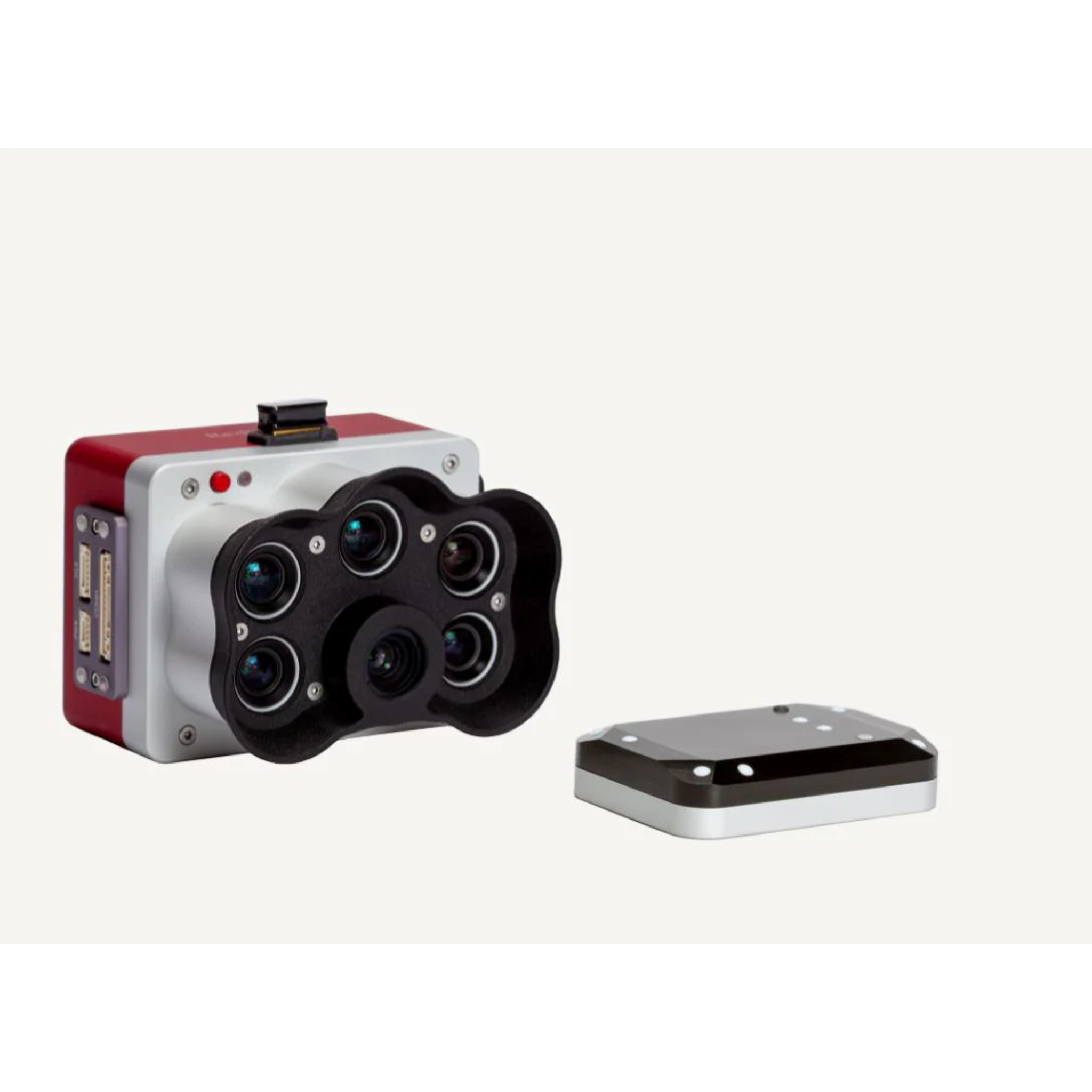

Micasense RedEdge-P Multispectral Kit and DJI Skyport for Matrice 300 RTK
Micasense RedEdge-P Multispectral Kit and DJI Skyport for Matrice 300 RTK
Micasense RedEdge-P Multispectral Kit and DJI Skyport for Matrice 300 RTK

Micasense RedEdge-P Multispectral Kit and DJI Skyport for Matrice 300 RTK

$9,995.00

S/N: 805-00090

The MicaSense RedEdge-P Multispectral Kit is an advanced imaging solution built for professionals in precision agriculture, environmental monitoring, and research. Equipped with the RedEdge-P camera, this kit captures five narrow spectral bands—including red, green, blue, red-edge, and near-infrared—allowing for accurate vegetation index calculations such as NDVI, NDRE, and GNDVI. With its high-resolution RGB output and precise multispectral data, users can assess crop health, monitor nutrient deficiencies, and detect stress across large agricultural areas with scientific accuracy.



Designed for efficiency and durability, the RedEdge-P seamlessly integrates with the DJI Matrice 300 RTK via the included Skyport adapter, enabling easy installation and consistent data capture across missions. The kit also includes a calibrated reflectance panel for radiometric accuracy and a rugged carry case for secure transport in field conditions. Compact yet powerful, the MicaSense RedEdge-P delivers repeatable, high-quality results—making it an indispensable tool for agronomists, researchers, and drone professionals seeking actionable crop insights.

  • Free Delivery

    Free delivery and returns

  • Warranty

    1-Year warranty policy
Quantity

  • Product Highlights

  • What's in the Box

  • Specs

High-Resolution Multispectral Imaging

Captures five narrow spectral bands (Blue, Green, Red, Red Edge, NIR) for precise vegetation analysis and crop health assessment.

RGB + Multispectral Output

Provides true-color imagery alongside multispectral data for detailed crop mapping and analysis.

DJI Skyport Integration

Designed for plug-and-play compatibility with the DJI Matrice 300 RTK, ensuring seamless operation.

Calibrated Reflectance Panel

Ensures radiometric consistency for accurate and repeatable results.

Rugged Carry Case

Protects the camera and accessories during transport and field deployment.

Compact, Lightweight Design

Built for durability and easy handling during extended missions.

Versatile Applications

Ideal for precision agriculture, crop monitoring, forestry, and environmental research.

Kit Contents

  • RedEdge-P sensor
  • M300 Skyport
  • DLS 2 with embedded GPS
  • Calibrated Reflectance Panel (CRP 2)
  • USB WiFi dongle
  • Lens cover
  • Necessary integration cables
  • Assorted mounting hardware
  • CFexpress card
  • CFexpress card reader
  • Hard Carrying Case
  • Quick StartGuide

Serial #: 805-00090
Weight:
300 g (10.6 oz) — RedEdge-P + DLS 2
Dimensions:
8.2 × 6.2 × 5.4 cm (3.2 × 2.4 × 2.1 in)
External Power:
7.0 V – 25.2 V
Spectral Bands:
Blue, Green, Red, Red Edge, Near-Infrared (Global shutter, narrowband)
Wavelengths (nm):
Blue: 475 nm center, 32 nm bandwidth
Green: 560 nm center, 27 nm bandwidth
Red: 668 nm center, 14 nm bandwidth
Red Edge: 717 nm center, 12 nm bandwidth
Near-Infrared: 842 nm center, 57 nm bandwidth
RGB Output:
5.1 MP (Global shutter, aligned with all bands)
Ground Sample Distance (GSD):
7.7 cm per pixel (per multispectral band) at 120 m AGL
3.98 cm per pixel (panchromatic band) at 120 m AGL
Capture Rate:
2–3 captures per second (RAW DNG)
Interfaces:
4 GPIO (Trigger input, Top-of-Frame Out, 1 PPS Out, Host Button)
USB 2.0 port for Wi-Fi
Serial, 10/100/1000 Ethernet
CFexpress Storage
Field of View (FOV):
Multispectral: 49.6° HFOV × 38.3° VFOV
Panchromatic: 44.5° HFOV × 37.7° VFOV
Triggering Options:
Timer mode, overlap mode, external trigger mode (PWM, GPIO, serial, or Ethernet), and manual capture mode
Operating Temperature:
0–40 °C ambient (no airflow)
0–50 °C ambient (with airflow > 0.5 m/s)

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What is the MicaSense RedEdge-P used for?

The RedEdge-P is designed for precision agriculture, crop monitoring, and environmental analysis, capturing multispectral and RGB imagery for calculating vegetation indices and assessing crop health.

What vegetation indices can I generate with the RedEdge-P?

You can create popular vegetation indices such as NDVI, NDRE, GNDVI, MCARI, and SAVI, among others. These indices provide insight into plant vigor, nutrient levels, and stress conditions.

How accurate is the multispectral data?

The RedEdge-P provides radiometrically calibrated, repeatable data thanks to its calibrated reflectance panel and DLS 2 light sensor, ensuring consistent measurements across multiple flights and dates.

Does the RedEdge-P capture RGB images as well?

Yes — the RedEdge-P features a high-resolution RGB sensor in addition to its five multispectral bands, enabling simultaneous true-color and multispectral image capture.

What software is recommended for processing RedEdge-P data?

The imagery can be processed using platforms like Pix4Dfields, Agisoft Metashape, DJI Terra, or MicaSense Atlas, allowing for seamless map creation and vegetation analysis.

Is the RedEdge-P weatherproof?

While the RedEdge-P is built for field use, it is not fully waterproof. It should be protected from direct rain or extreme moisture during operation.
