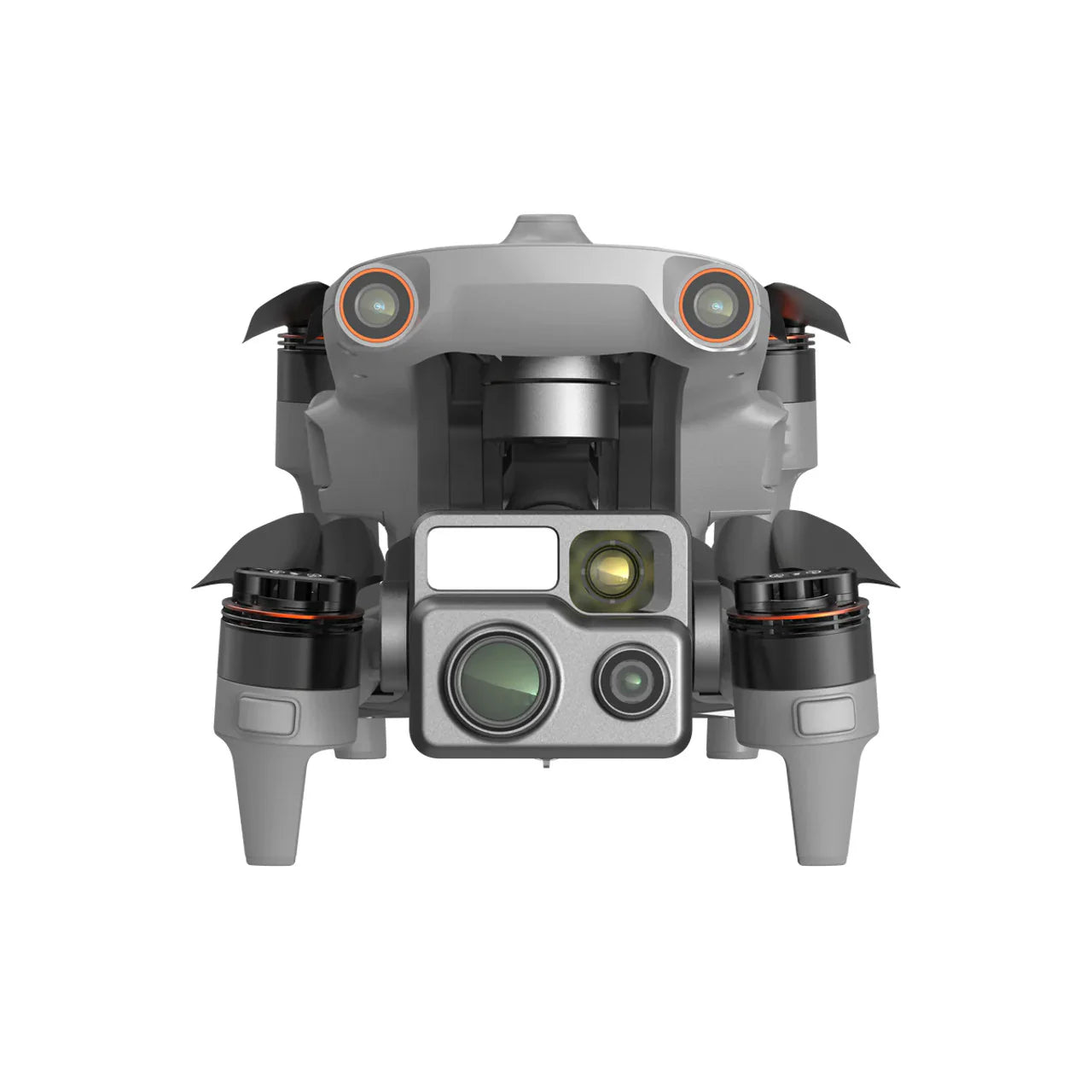

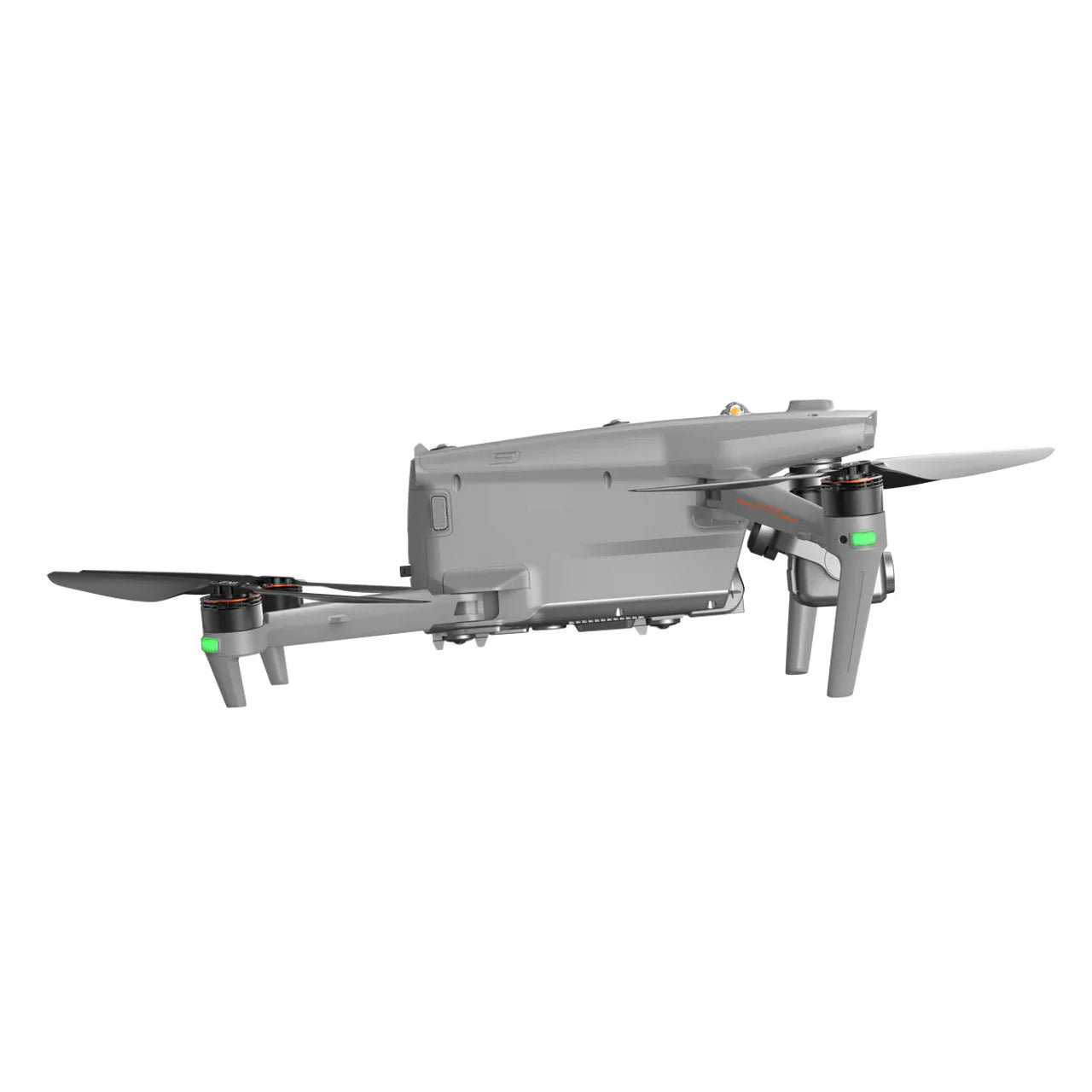

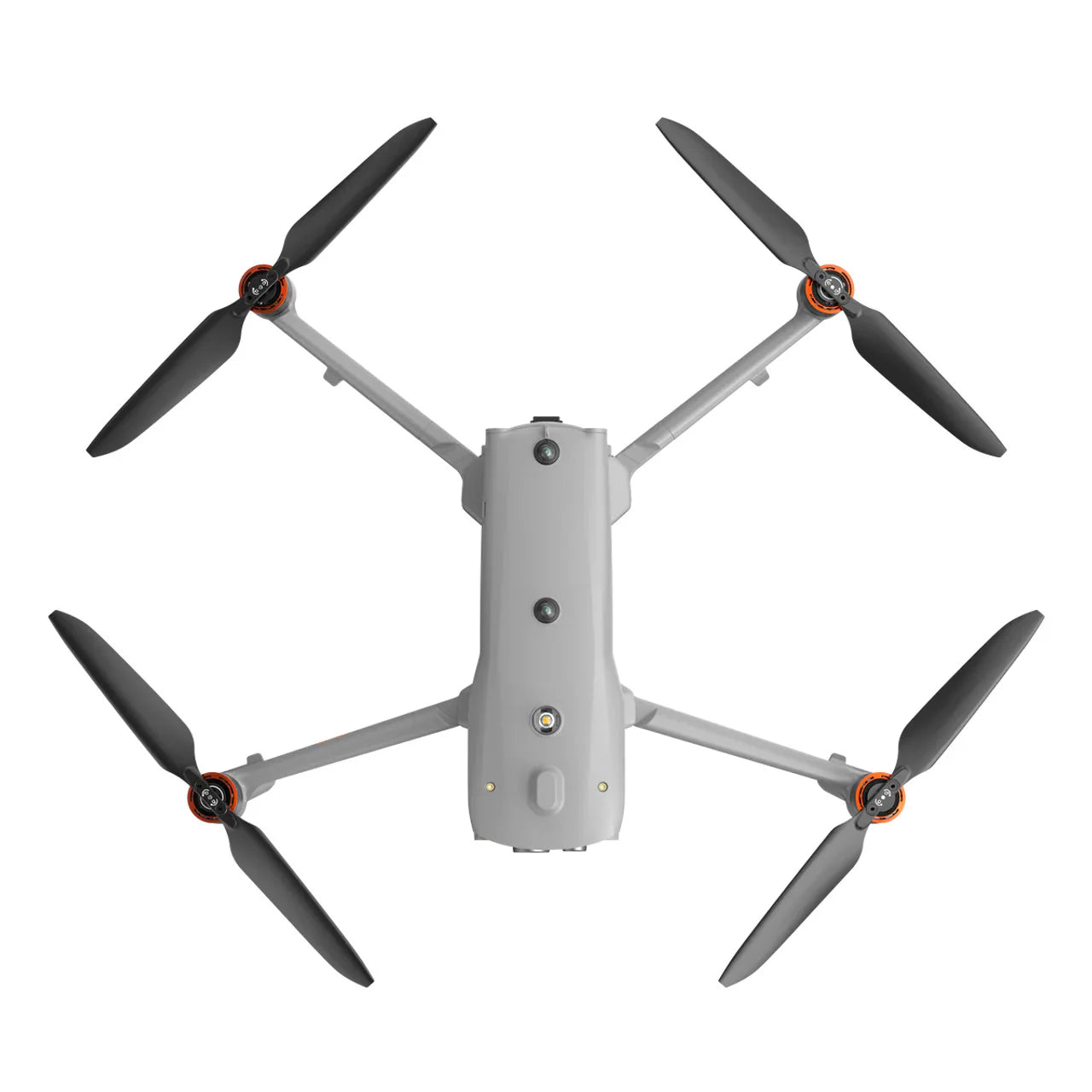

Autel EVO MAX 4T XE Drone Bundle
Autel EVO MAX 4T XE Drone Bundle
Autel EVO MAX 4T XE Drone Bundle
Autel EVO MAX 4T XE Drone Bundle
Autel EVO MAX 4T XE Drone Bundle

Autel EVO MAX 4T XE Drone Bundle

15 reviews
$8,999.00
Quick Answer: The Autel EVO Max 4T XE ($8,999) is Autel's flagship multi-sensor enterprise drone, combining a 48MP zoom camera (10x optical / 160x digital), a 50MP wide camera, a 640x512 thermal imager, and a 1.2km laser rangefinder. With A-Mesh networking, GPS-denied SLAM navigation, a 20km transmission range, and no geofencing, it is built for public safety, inspection, and mapping. NDAA / Blue UAS cleared. Ships from the US.

The Autel EVO Max 4T XE is the multi-sensor workhorse of Autel's enterprise lineup. Where most drones force a choice between thermal, zoom, or wide capture, the 4T XE carries all of it in a single gimbal, so one flight delivers thermal anomaly detection, standoff optical identification, wide-area mapping, and precise distance-to-target coordinates. It is the platform of choice for teams that need DJI-class capability with no software geofencing and federal procurement eligibility.

Autel EVO Max 4T XE Specifications

Spec Detail
Zoom Camera 48MP, 10x optical / up to 160x digital zoom
Wide Camera 50MP
Thermal Camera 640x512 resolution
Laser Rangefinder Up to 1.2km
Transmission Range 20km
Flight Time Up to 42 minutes
Wind Resistance Level 12
Navigation GPS / GLONASS / BeiDou + SLAM (GPS-denied)
Networking A-Mesh drone-to-drone relay
Geofencing None
Price $8,999

Why the EVO Max 4T XE

  • One flight, every sensor. Thermal, 10x optical zoom, 50MP wide, and laser ranging in a single payload eliminate the need to swap aircraft or make multiple passes.
  • No geofencing. Launch authority stays with the operator and incident commander, critical for public safety teams near airports or restricted airspace.
  • NDAA / Blue UAS eligible. On the DIU Blue UAS cleared list for federal and grant-funded procurement, where DJI is restricted.
  • Built for hard conditions. Level 12 wind resistance, A-Mesh networking for multi-aircraft coverage, and SLAM navigation for GPS-denied indoor and urban environments.

Use Cases

Public safety: standoff identification with 10x zoom, thermal tracking at night, and laser-ranged coordinates for tactical teams. Thermal inspection: power lines, solar farms, and industrial sites in a single flight. Mapping and survey: 50MP wide capture for area documentation, with the optional RTK module for centimeter accuracy.

Accessories

Extend the 4T XE with the RTK Module, Speaker & Spotlight bundle, Payload Drop System-H, and the EVO Nest autonomous dock. See the full EVO Max accessories guide.

Learn More

  • Free Delivery

    Free delivery and returns

  • After-Sale Service

    24/7 support
Quantity

  • Product Highlights

  • Evo Max 4T XE Specs

  • What's in the box

  • User Manual

Autel Evo Max 4T XE Bundle Highlights

42-min Max Flight Time:

Reliable endurance for complex enterprise missions with hot-swappable batteries.

SkyLink 3.0 Transmission:

15 km HD video transmission with <150 ms latency and AES encryption.

Battery Cycles:

High-capacity intelligent batteries designed for efficiency and longer mission lifespans.

720° Obstacle Avoidance:

Fisheye stereo vision + millimeter-wave radar for safe operation in all directions.

Multi-Sensor Payload:

Integrated gimbal with 8K 10x optical zoom, 640x512 thermal, wide-angle, and laser rangefinder.

Night Vision & Thermal Imaging:

Starlight camera with ISO up to 64000 plus thermal for true all-condition operations.

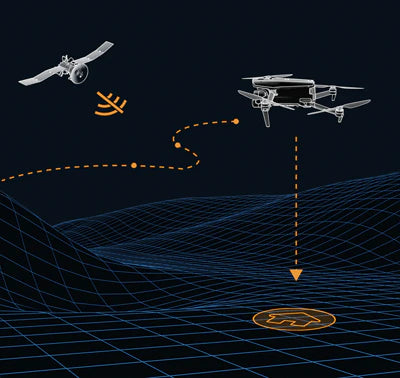

High-Precision Mapping:

Supports RTK, 3D scene reconstruction, and GNSS-denied navigation.

Autel Smart Controller V3:

Ultra-bright display and dual-control support for flexible operations.

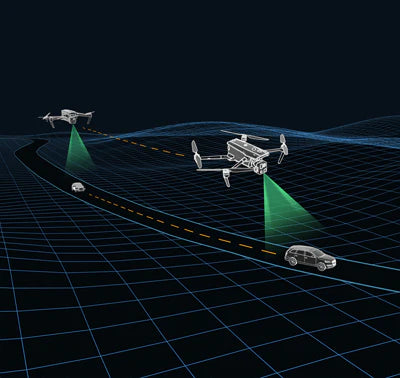

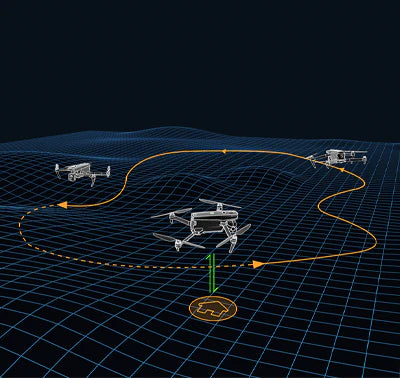

A-Mesh Networking:

Industry-first mesh system enabling multi-drone, multi-operator collaboration.

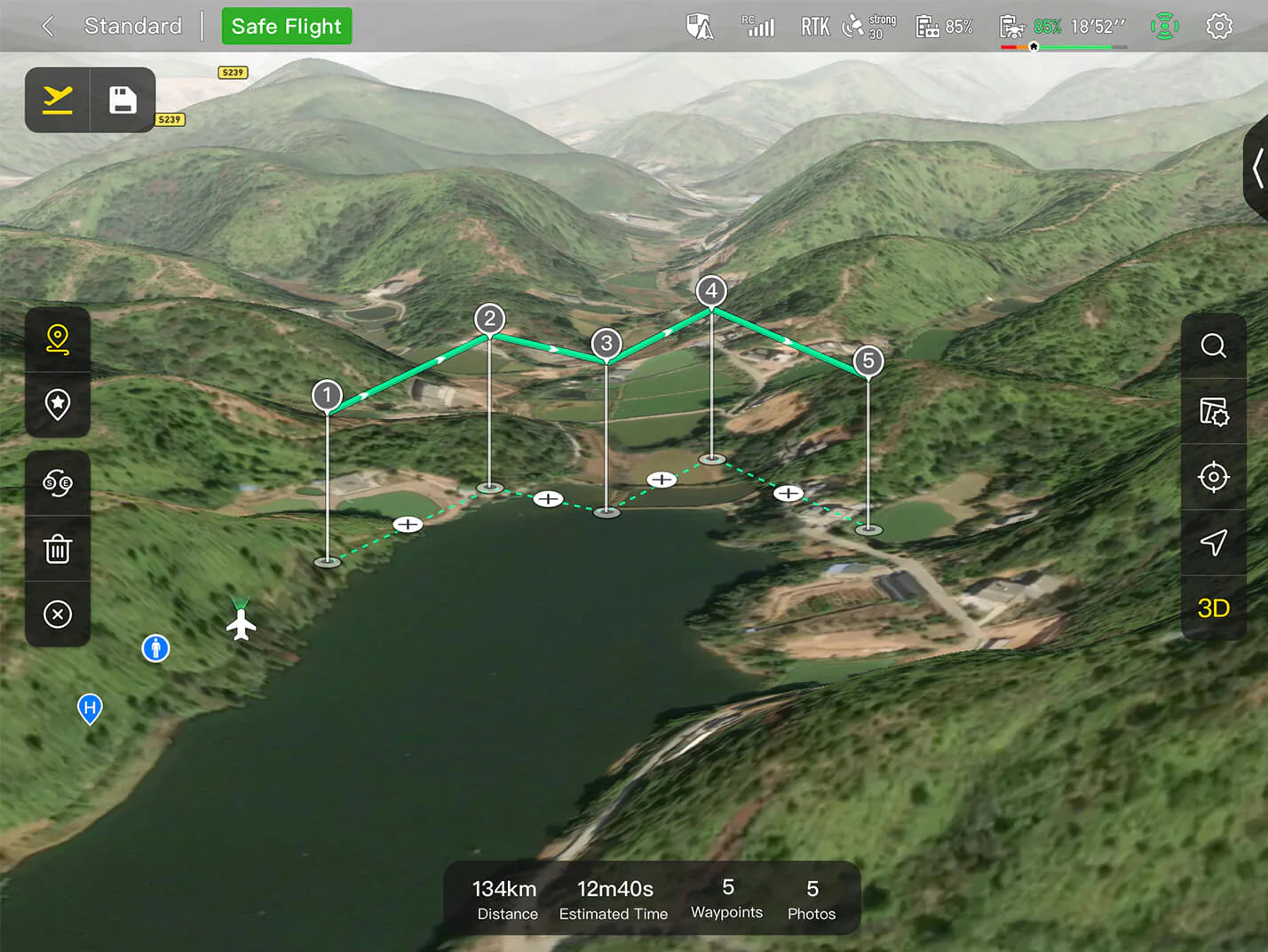

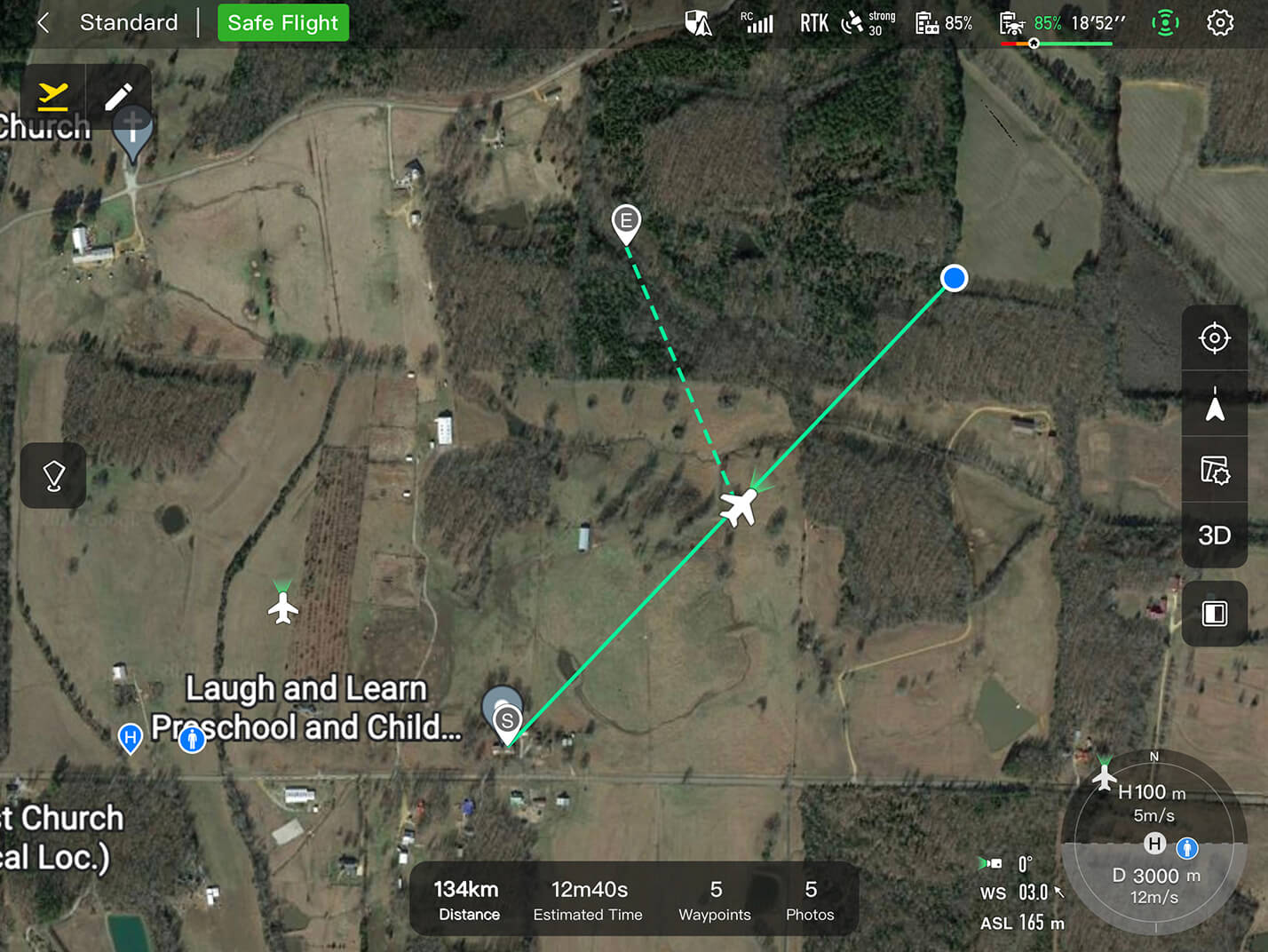

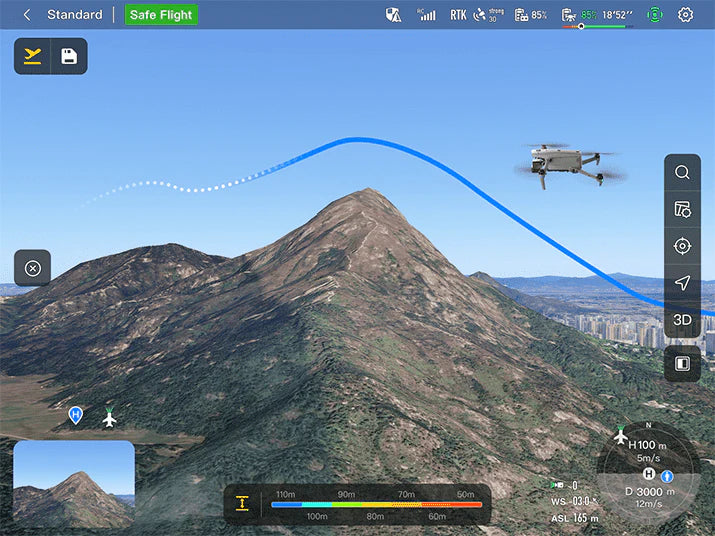

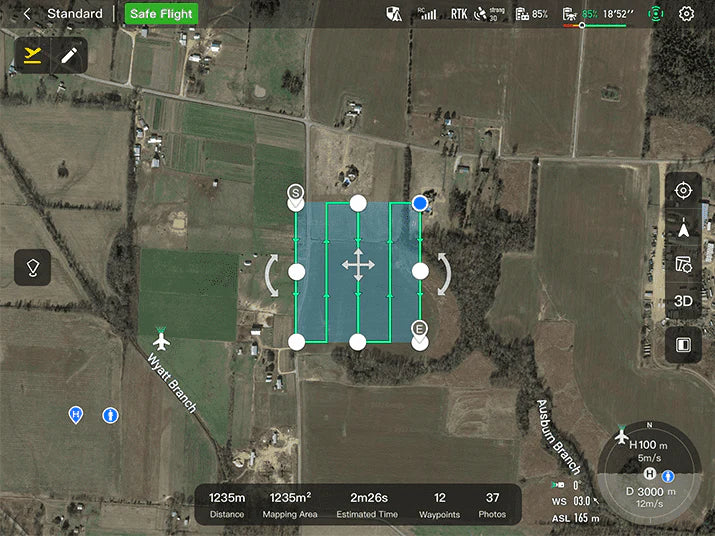

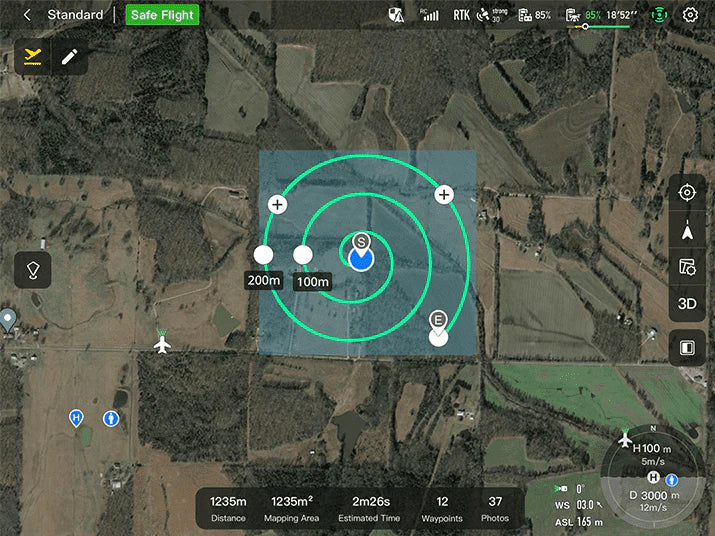

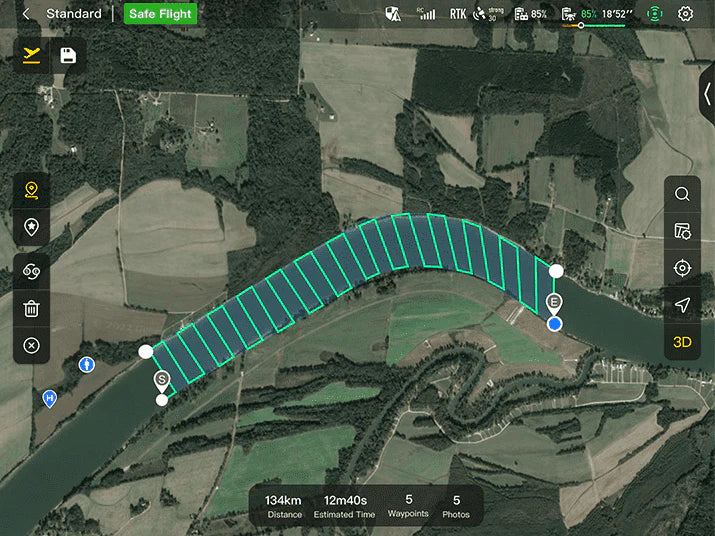

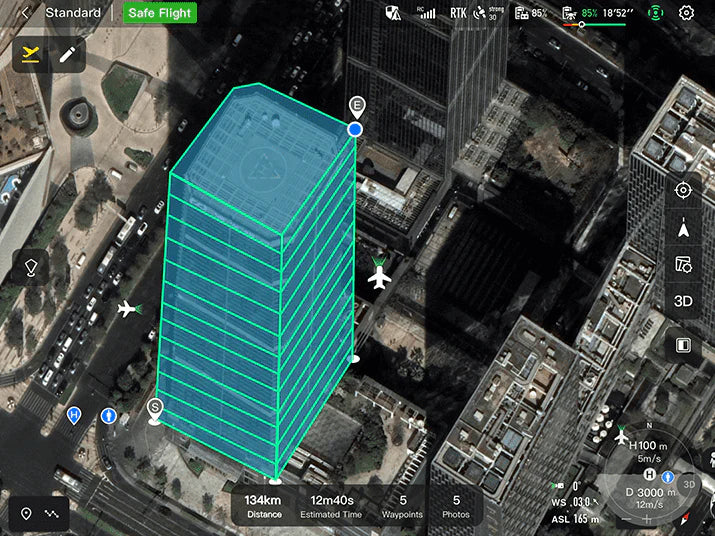

Automated Mission Planning:

Supports waypoint, polygon, and AI-driven flight tasks with EVO Nest compatibility.

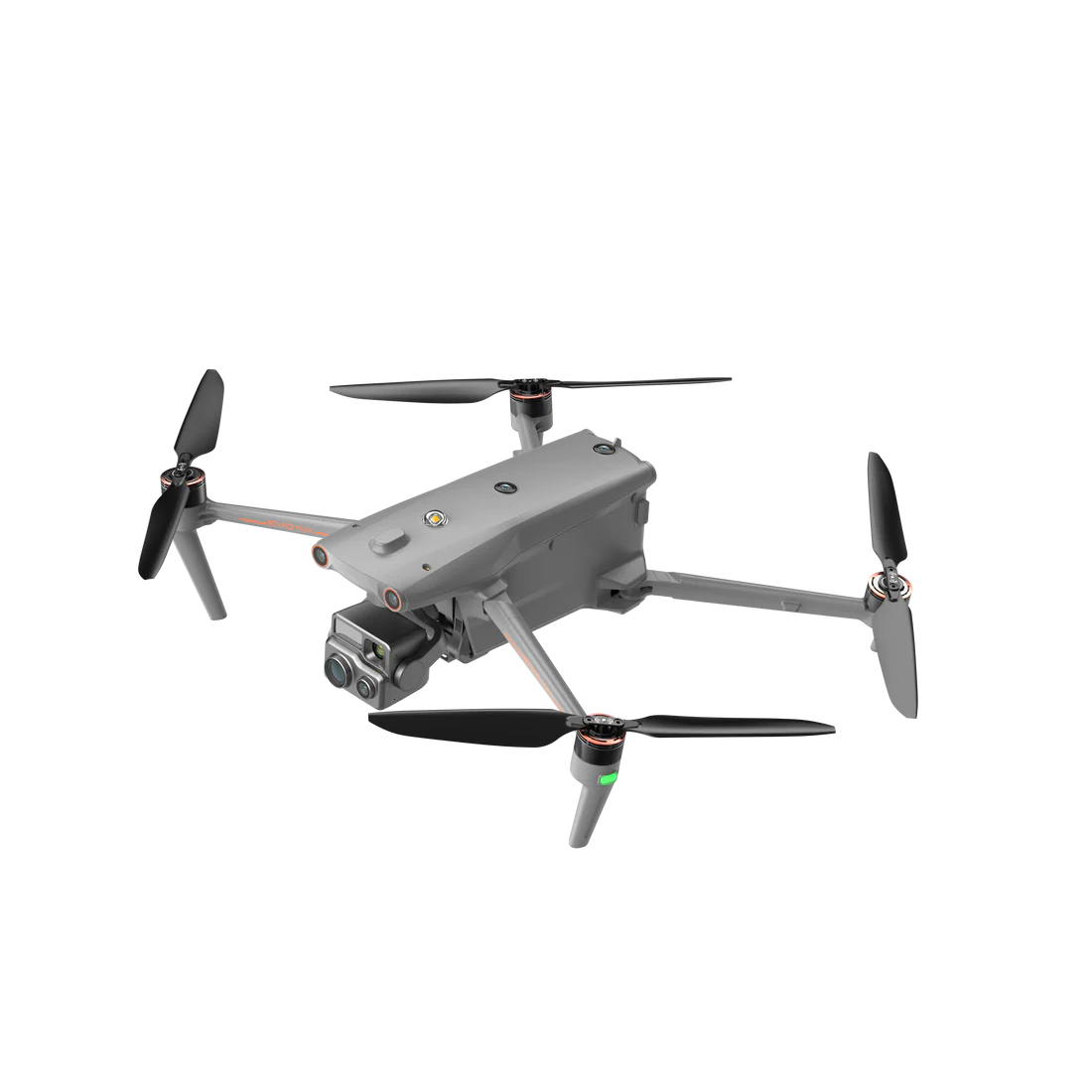

Aircraft

  • Weight (battery & propellers included): 1640 g (3.62 lbs, ABX40 smart battery, Fusion 4T gimbal, and propellers included)
  • Maximum take-off mass: 1999 g (4.41 lbs)
  • Maximum take-off mass (for C2 certification in EU): 1890 g (4.17 lbs)
  • Dimensions:
    • 562 × 651 × 147 mm (unfolded, incl. propellers)
    • 318 × 400 × 147 mm (unfolded, excl. propellers)
    • 257 × 145 × 131 mm (folded, excl. propellers)
  • Diagonal wheelbase: 466 mm (1.53 ft)
  • Propeller dimension: 11 inches
  • Propeller weight: 10.5 g
  • Maximum propeller rotational speed: 8000 RPM
  • Maximum ascent speed:
    • Slow: 3 m/s
    • Smooth: 5 m/s
    • Standard: 6 m/s
    • Ludicrous: 8 m/s
  • Maximum descent speed:
    • Slow: 3 m/s
    • Smooth: 5 m/s
    • Standard: 6 m/s
    • Ludicrous: 6 m/s
  • Maximum horizontal flight speed (windless near sea level):
    • Slow: 3 m/s
    • Smooth: 10 m/s
    • Standard: 15 m/s (forward & backward), 10 m/s (sidewards)
    • Ludicrous: 23 m/s (forward), 18 m/s (backward), 20 m/s (sidewards)
  • Maximum service ceiling above sea level:
    • 4000 m (13,123 ft) using ABX40 smart battery
    • 3000 m (9,843 ft) using ABX41 smart battery
  • Maximum flight altitude: 800 m (2625 ft) (altitude limit in app)
  • Maximum flight time (windless): 42 minutes
  • Maximum hovering time (windless): 38 minutes
  • Maximum wind resistance: 12 m/s (27 mph)
  • IP rating: IP43 (custom service)
  • Maximum tilt angle:
    • Slow: 10°
    • Smooth: 30°
    • Standard: 30°
    • Ludicrous: 36°
  • Maximum angular velocity:
    • Pitch axis: 300°/s
    • Heading axis: 120°/s
  • Operating temperature: -20°C to 50°C (-4°F to 122°F)
  • Internal storage: 128 GB (64 GB available, varies with firmware versions)
  • Wi-Fi operating frequency:
    • 2.4G: 2.400–2.476 GHz, 2.400–2.4835 GHz
    • 5.2G: 5.15-5.25 GHz (only FCC, CE, and UKCA regions), 5.17-5.25 GHz (only Germany)
    • 5.8G: 5.725-5.829 GHz, 5.725-5.850 GHz
  • Note: Some frequencies are only applicable in certain regions or only for indoor use. Refer to local laws and regulations.
  • GNSS: GPS, Galileo, BeiDou, GLONASS
  • Wi-Fi effective isotropic radiated power (EIRP):
    • 2.4G: ≤30 dBm (FCC), ≤20 dBm (CE/SRRC/UKCA), ≤12.14 dBm (MIC)
    • 5.2G: ≤30 dBm (FCC), ≤23 dBm (CE/UKCA)
    • 5.8G: ≤30 dBm (FCC/SRRC), ≤14 dBm (CE/UKCA)
  • Hovering accuracy:
    • Vertically: ±0.1 m (vision systems working normally), ±0.5 m (GNSS working normally)
    • Horizontally: ±0.3 m (vision systems working normally), ±0.5 m (GNSS working normally)
  • Wi-Fi protocol: 802.11a/b/g/n/ac/ax (supports 2x2 MIMO Wi-Fi)

Gimbal

  • Mechanical range:
    • Fusion 4T XE Gimbal: Pitch: -135° to 45°, Yaw: -45° to 45°, Roll: -45° to 45°
    • Fusion 4T Gimbal: Pitch: -135° to 45°, Yaw: -45° to 45°, Roll: -45° to 45°
    • Fusion 4N Gimbal: Pitch: -135° to 45°, Yaw: -50° to 50°, Roll: -45° to 45°
  • Controllable range: Pitch: -90° to 30°
  • Stabilization system: 3-axis mechanical gimbal (pitch, yaw, roll)
  • Max control speed (pitch): 100º/s
  • Angular vibration range: < 0.005°

EVO Max 4T XE Zoom Camera

  • Sensor: 1/2" CMOS, 48M effective pixels
  • Lens: Focal length: 11.8-43.3 mm, 35 mm equivalent: 64-234 mm, Aperture: f/2.8-f/4.8, Focusing distance: 5 m ~ ∞
  • ISO range:
    • Normal mode: Auto: ISO 100 ~ ISO 6400, Manual: Photo: ISO 100 ~ ISO 6400
  • Shutter speed: 1/8 s ~ 1/10000 s
  • Digital zoom: 2.7-10x continuous optical zoom, 160x hybrid zoom
  • Max photo resolution: JPG: 4000 × 3000, 8192 × 6144, DNG: 4000 × 3000
  • Max video resolution: 4000 × 3000 30P

EVO Max 4T XE Infrared Thermal Imaging Camera

  • Image sensor: Uncooled VOx Microbolometer
  • Lens: FOV: 61°, Focal length: 9.1 mm, Aperture: f/1.0, Focusing distance: 2.2 m ~ ∞
  • Radiometric measurement accuracy: ±2°C or ±2% of reading (using the larger value) @ ambient temperature range -20°C to 60°C (-4°F to 140°F)
  • Video resolution: 640 × 512 30P
  • Photo size: 640 × 512
  • Pixel pitch: 12 µm
  • Radiometric measurement methods: Center measurement, spot measurement, rectangular measurement
  • Temperature measurement range: -20°C to 150°C (-4°F to 302°F), 0°C to 550°C (32°F to 1022°F)
  • Temperature alert: High and low-temperature alarm thresholds, reporting coordinates and temperature values
  • Palette: White Hot, Black Hot, Ironbow, Rainbow

Laser Rangefinder

  • Wavelength: 905 nm
  • Measurement accuracy: ±(1 m + D×0.15%) where D is the distance to a vertical reflecting plane
  • Measuring range: 5 - 1200 m

Wide Angle Camera

  • Image sensor: 1/1.28" CMOS, 50M effective pixels
  • Lens: DFOV: 85°, Focal length: 4.5 mm (equivalent: 23 mm), Aperture: f/1.9, AF motor: 8-line SMA, PDAF focusing, Focusing distance: 1 m ~ ∞
  • ISO range:
    • Auto: Photo: ISO 100 ~ ISO 6400, Video: ISO 100 ~ ISO 64000, Night mode: up to ISO 64000
    • Manual: Photo: ISO 100 ~ ISO 12800, Video: ISO 100 ~ ISO 64000
  • Shutter speed: Photo: 0.5 s ~ 1/8000 s, Video: 1/30 s ~ 1/8000 s
  • Video resolution: 4000 × 3000 30P
  • Video format: MP4
  • Max bit rate: 70 Mbps
  • Photo size: 4000 × 3000 (default), 8000 × 6000
  • Photo format: JPG

Image Transmission

  • Operating frequency:
    • 900M: 902-928 MHz*
    • 2.4G: 2.400–2.476 GHz**, 2.400–2.4835 GHz
    • 5.2G: 5.15-5.25 GHz***, 5.17-5.25 GHz****
    • 5.8G: 5.725-5.829 GHz**, 5.725-5.850 GHz
  • *Only applicable to FCC and ISED regions. **Only applicable to SRRC regions. ***Only applicable to FCC, CE, and UKCA regions. ****Only applies to Germany.
  • Max transmission distance (without interference and blocking):
    • FCC: 15 km
    • CE: 8 km
  • Independent networking: Autel Smart Controller V3
  • Effective isotropic radiated power (EIRP):
    • 900M: ≤30 dBm (FCC/ISED)
    • 2.4G: ≤30 dBm (FCC/ISED), ≤20 dBm (CE/SRRC/UKCA)
    • 5.8G: ≤30 dBm (FCC/ISED/SRRC), ≤14 dBm (CE/UKCA)

Millimeter-Wave Radar Sensing System

  • Operating frequency:
    • 60G: 60 - 64 GHz
    • 24G: 24.0 - 24.25 GHz
  • Effective isotropic radiated power (EIRP):
    • 60G: ≤20 dBm (CE/UKCA/FCC)
    • 24G: ≤20 mW (SRRC)
  • Sensing range:
    • 60G millimeter-wave radar:
      • Upward: 0.3 - 20 m
      • Downward: 0.15 - 80 m
      • Forward & backward: 0.3 - 50 m
    • 24G millimeter-wave radar:
      • Downward: 0.8 - 12 m
  • FOV: Horizontal (6 dB): ±60°/±22° (60 GHz/24 GHz), Vertical (6 dB): ±30°/±20° (60 GHz/24 GHz)
  • Operating environment:
    • 60 GHz millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 4 directions. The obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size.
    • 24 GHz millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies depending on the ground material. For example, the sensing range on cement is 12 m, while grass with a thickness of more than 3 cm reduces the range to less than 6 m.

Aircraft version limitations*

  • To comply with (national) regional regulations, certain aircraft versions use a 24 GHz millimeter-wave radar in the downward direction and 60 GHz radars in the forward, backward, and upward directions.
  • In the 24 GHz aircraft version, the 60 GHz radars in the forward, backward, and upward directions are disabled in the flight software at the factory. Only the 24 GHz radar in the downward direction is enabled to assist in landing.
  • The 24 GHz aircraft version only supports visual obstacle avoidance under good lighting conditions and does not support millimeter-wave radar obstacle avoidance at night.

Visual obstacle avoidance sensing system

  • Sensing range:
    • Forward: 19.7 - 1220.5 in (0.5 - 31 m)
    • Backward: 19.7 - 984.3 in (0.5 - 25 m)
    • Sideward: 19.7 - 1023.6 in (0.5 - 26 m)
    • Upward: 0.66 - 85.3 ft (0.2 - 26 m)
    • Downward: 0.98 - 75.5 ft (0.3 - 23 m)
  • FOV:
    • Forward/backward sensor: 60° (horizontal), 80° (vertical)
    • Upward/downward sensor: 180° (sideward), 120° (forward & backward)
  • Operating environment:
    • Forward, backward, sideward, and upward: Surface with rich texture, under sufficient lighting (>15 lux, normal indoor fluorescent lighting environment)
    • Downward: Diffuse surface with a reflectivity >20% (walls, trees, humans, etc.), under sufficient lighting (>15 lux, normal indoor fluorescent lighting environment)

Radar and visual obstacle avoidance sensing systems

  • Sensing range:
    • Forward & backward: 0.3 - 50 m
    • Sidewards: 0.5 - 26 m
    • Upward: 0.2 - 26 m
    • Downward: 0.15 - 80 m (60 GHz millimeter-wave radar)
  • FOV:
    • Forward & backward: 120° (horizontal), 80° (vertical)
    • Upward: 180° (sideward), 120° (forward & backward)
    • Downward: 180° (sideward), 120° (forward & backward)
  • Operating environment:
    • Forward, backward, upward, and downward: Supports all-weather obstacle avoidance for various conditions, including water, forests, buildings, and high voltage lines. At least one of the two conditions should be met: sufficient lighting or the obstacle has a strong reflection ability to electromagnetic waves.
    • Sidewards: Surface with rich texture, under sufficient lighting (>15 lux, normal indoor fluorescent lighting environment).

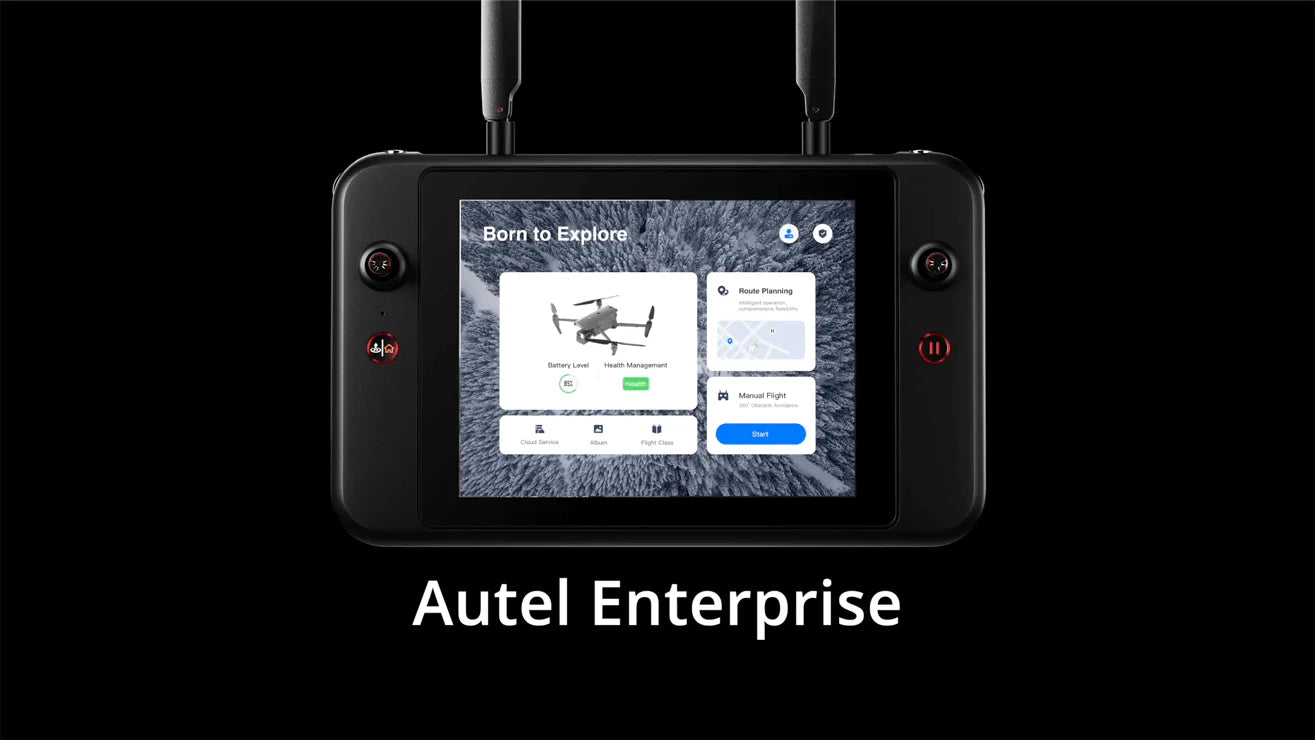

Autel smart controller V3

  • Display:
    • Dimensions: 7.9 inches
    • Maximum brightness: 2000 nits
    • Resolution: 2048 × 1536
    • Refresh rate: 60 Hz
  • Battery:
    • Battery type: Li-Po 3S
    • Rated capacity: 5800 mAh
    • Voltage: 11.55 V
    • Battery energy: 67 Wh
    • Charging time: 120 minutes
  • Operating time: 2.5 hours (max brightness), 4.0 hours (50% brightness)
  • Maximum transmission distance (without interference and blocking):
    • FCC: 15 km (9.3 miles)
    • CE/SRRC: 8 km (4.9 miles)
  • IP rating: IP43
  • Internal storage: 128 GB
  • GNSS: GPS, GLONASS, Galileo, BeiDou
  • Operating temperature: -4°F to 104°F (-20°C to 40°C)
  • Wi-Fi protocol: 802.11a/b/g/n/ac (supports 2x2 MIMO Wi-Fi)
  • Wi-Fi operating frequency:
    • 2.4G: 2.400–2.476 GHz, 2.400–2.4835 GHz
    • 5.8G: 5.725-5.829 GHz, 5.725-5.850 GHz
  • * Only applies to SRRC regionsNote: Some frequencies are only applicable in certain regions or only for indoor use. Refer to local laws and regulations.
  • Wi-Fi effective isotropic radiated power (EIRP):
    • 2.4G: ≤30 dBm (FCC/ISED); ≤20 dBm (CE/SRRC/UKCA)
    • 5.8G: ≤30 dBm (FCC/ISED/SRRC); ≤14 dBm (CE/UKCA)

Smart battery

  • Battery dimension: 158.4 × 74.3 × 50.7 mm
  • Operating temperature: -4°F to 113°F (-20°C to 50°C)
  • Rated capacity:
    • ABX40: 8070 mAh
    • ABX41: 9248 mAh
  • Voltage:
    • ABX40: 14.88 V
    • ABX41: 14.76 V
  • Battery type: LiPo 4S
  • Battery energy:
    • ABX40: 120 Wh
    • ABX41: 136.5 Wh
  • Weight:
    • ABX40: 1.15 lbs (520 g)
    • ABX41: 1.17 lbs (533 g)
  • Battery charge temperature: 41°F to 113°F (5°C to 45°C)
    • When the battery temperature is below +5°C, the battery stops charging and activates self-heating.
    • When the battery temperature is above +45°C, the battery stops charging.
  • Hot swappable: Supported

Autel EVO Max 4 Aircraft

Autel EVO Max 4T XE Camera/Gimbal

Autel EVO Max 4 Series Intelligent Flight Battery

Autel EVO Max 4 Series Gimbal Cover

Autel EVO Max 4 Series Battery Charger & Power Cable

Autel EVO Max 4 Series Propellers (Pair) x3 (3-CW/3-CCW)

Autel Smart Controller V3

Autel Smart Controller Lanyard

Autel Smart Controller Cover

Autel Smart Controller Joysticks (Spare Pair) x1

Autel RC Charger

Autel RC Charging Cable

Autel EVO Max 4 Series Rugged Case

64GB MicroSD Card

Screwdriver

Data Cable

Manual

Quick Start Guide

Packing List

Limited 1-Year Manufacturer Warranty

A CLOSER LOOK

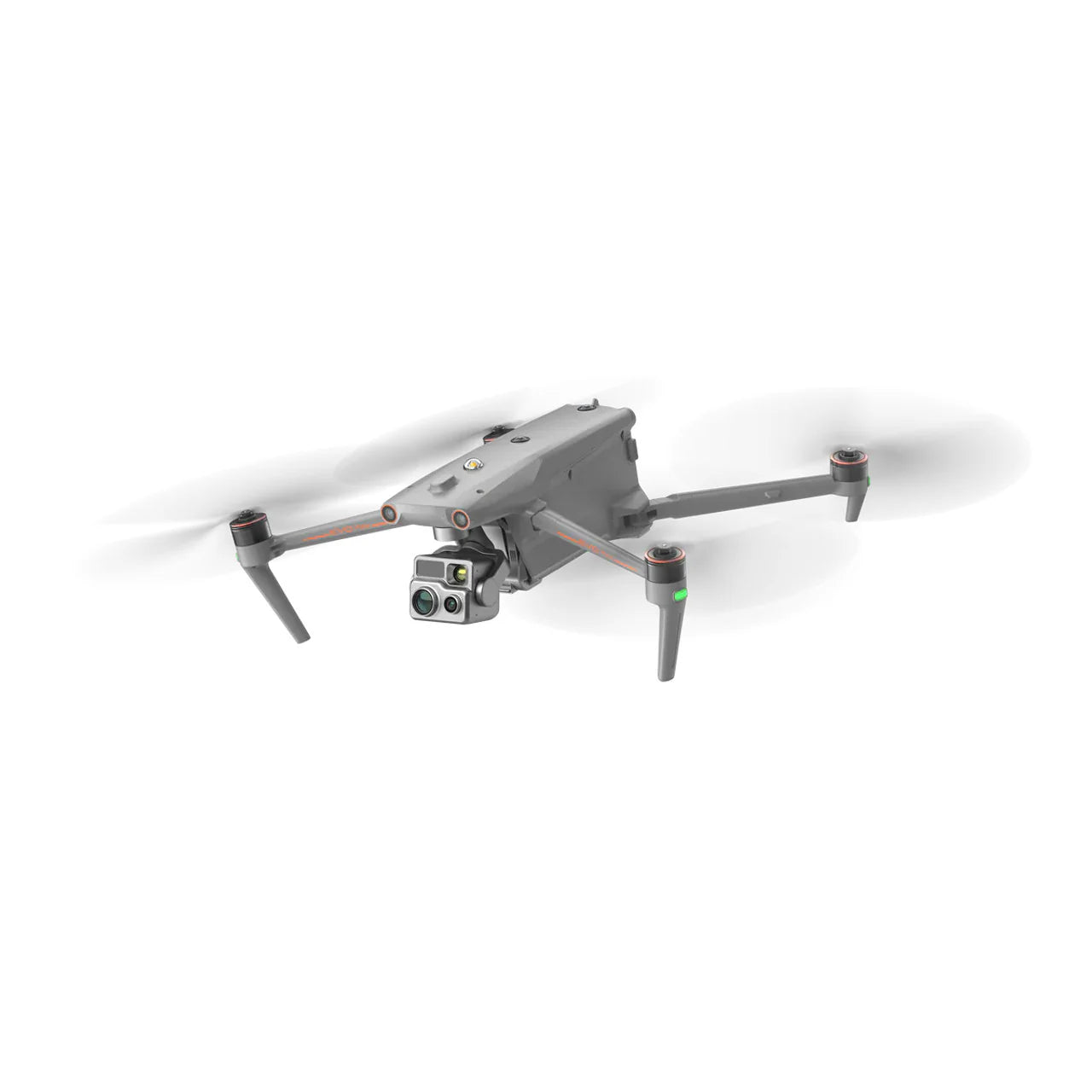

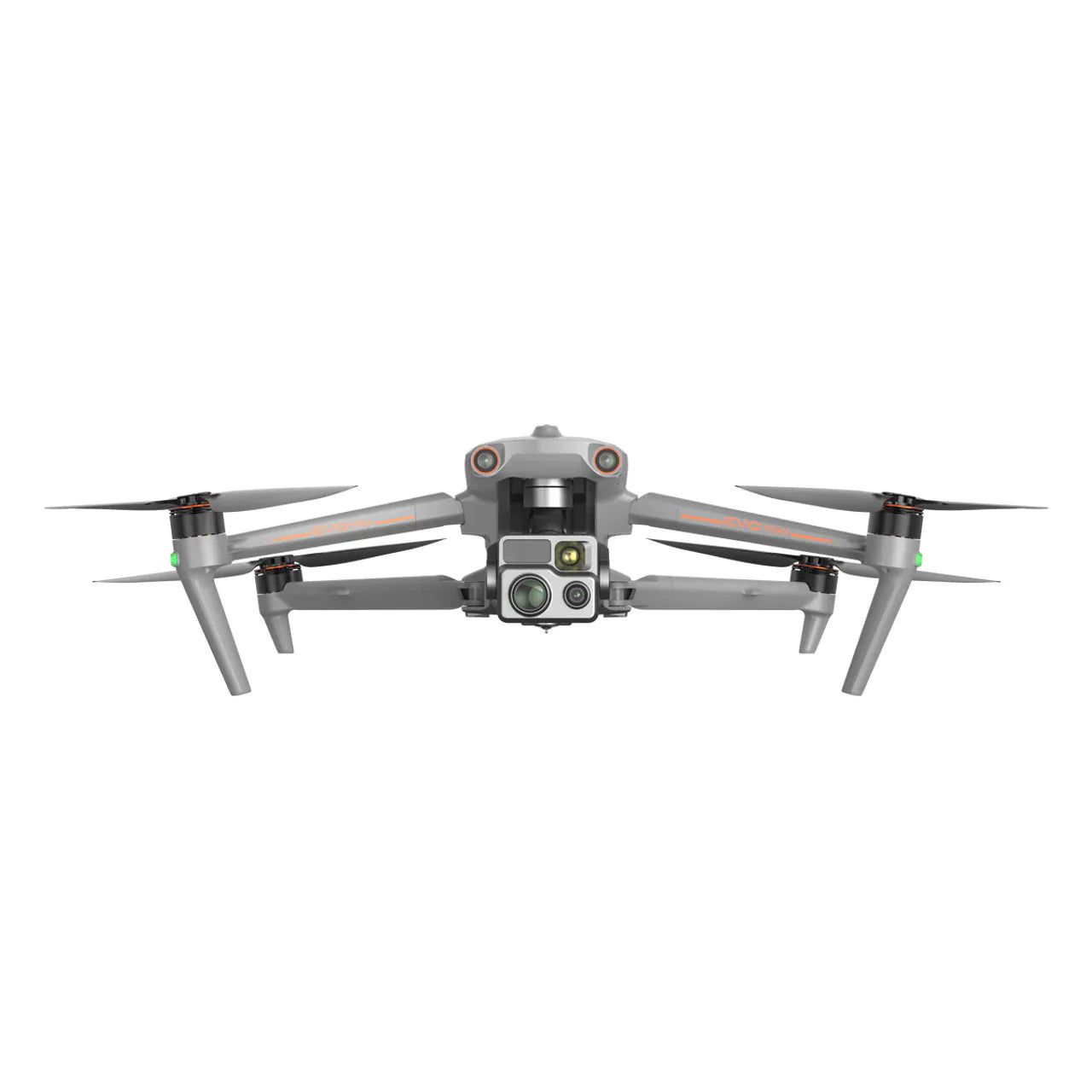

Autel Robotics Evo Max 4T XE Bundle

15s Take Off

8K 10x Optical Zoom

IP43 Weather Rating

Hot-Swappable Batteries

Navigation In GPS Denied Environments

12.4 miles Transmission Range

42 Minutes Flight Time

720°Obstacle Avoidance

Autel Autonomy

EVO Max 4T Xe is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows Autel EVO Max 4T Xe's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

No Blind Spots

Ultimate Obstacle Avoidance

EVO Max 4T Xe is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows Autel EVO Max 4T Xe's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions

Anti Jam, Anti Interference

EVO Max 4T Xe uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables Autel EVO Max 4T Xe to fly confidently near power lines, critical structures, and in complex areas.

Autel SkyLink 3.0

Autel EVO Max 4T Xe SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.

Strong Anti-Interference

Autel EVO Max 4T Xe can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.




Beyond-Line-of-Sight Applications

With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.

Full-Fleet Control

Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.

Enhanced Range

Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.

A-Mesh 1.0

EVO Max 4T Xe features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.

Autel Enterprise App Platform

Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize Autel EVO Max 4T Xe's mission capability.

Smart Features

Multiple Mission Types

The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.

Polygon Mission

Supports one-click automatic generation of polygon flight areas.

Terrain Follow

Maintain relatively constant altitude from the ground for uneven or sloped terrain.

Rectangular Mission

Supports one-click automatic generation of a rectangular flight area.

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

Can I fly the M350 RTK in the rain?

Yes. The M350 RTK has an IP55 rating, meaning it’s protected against dust and low-pressure water jets from any direction. It can safely handle light to moderate rain, but avoid operating in heavy rainfall (over 100 mm/24 hr).

How long does it take to charge the TB65 batteries?

Using a 220V outlet, two TB65 batteries can fully charge in about 60 minutes (or 30 minutes from 20–90%). With a 110V outlet, charging takes around 70 minutes (or 40 minutes from 20–90%).

Can I bring TB65 batteries on an airplane?

No. With a capacity of 263 Wh, TB65 batteries exceed airline carry-on limits and cannot be transported on passenger aircraft. They must be shipped as cargo through approved carriers.

What payloads are compatible with the M350 RTK?

The M350 RTK supports a wide range of DJI payloads, including the Zenmuse H30, H30T, H20 series, L1, L2, P1, as well as certified third-party payloads via DJI’s Payload SDK.

How many payloads can I mount at once?

You can mount up to three payloads simultaneously — one on the upward gimbal and two on the downward gimbals. This allows for flexible operations such as mapping, thermal imaging, and visual inspection all in a single flight.

Can the M350 RTK be used for high-precision surveying?

Yes. When paired with compatible payloads like the Zenmuse P1 or L1, the M350 RTK delivers survey-grade accuracy. It also supports PPK (post-processed kinematic) workflows for enhanced precision.

How long do TB65 batteries last?

Each TB65 battery is rated for about 400 charge cycles, 12 months of use, or 120 days of high-power storage — whichever comes first. Proper care and storage can help maximize battery life.

Can't find an answer to your question?

Call us at (855) 906-5185 or email us at support@globaldronehq.com

Thanks for contacting us. We'll get back to you as soon as possible.

Email address*

Your question*

Request a Quote

Autel EVO MAX 4T XE Drone Bundle

Tell us a bit about your project and we'll get back to you within one business day with a custom quote.
