JZ T30 30W Matrix Lamp Spotlight

JZ T30 30W Matrix Lamp Spotlight

$799.00

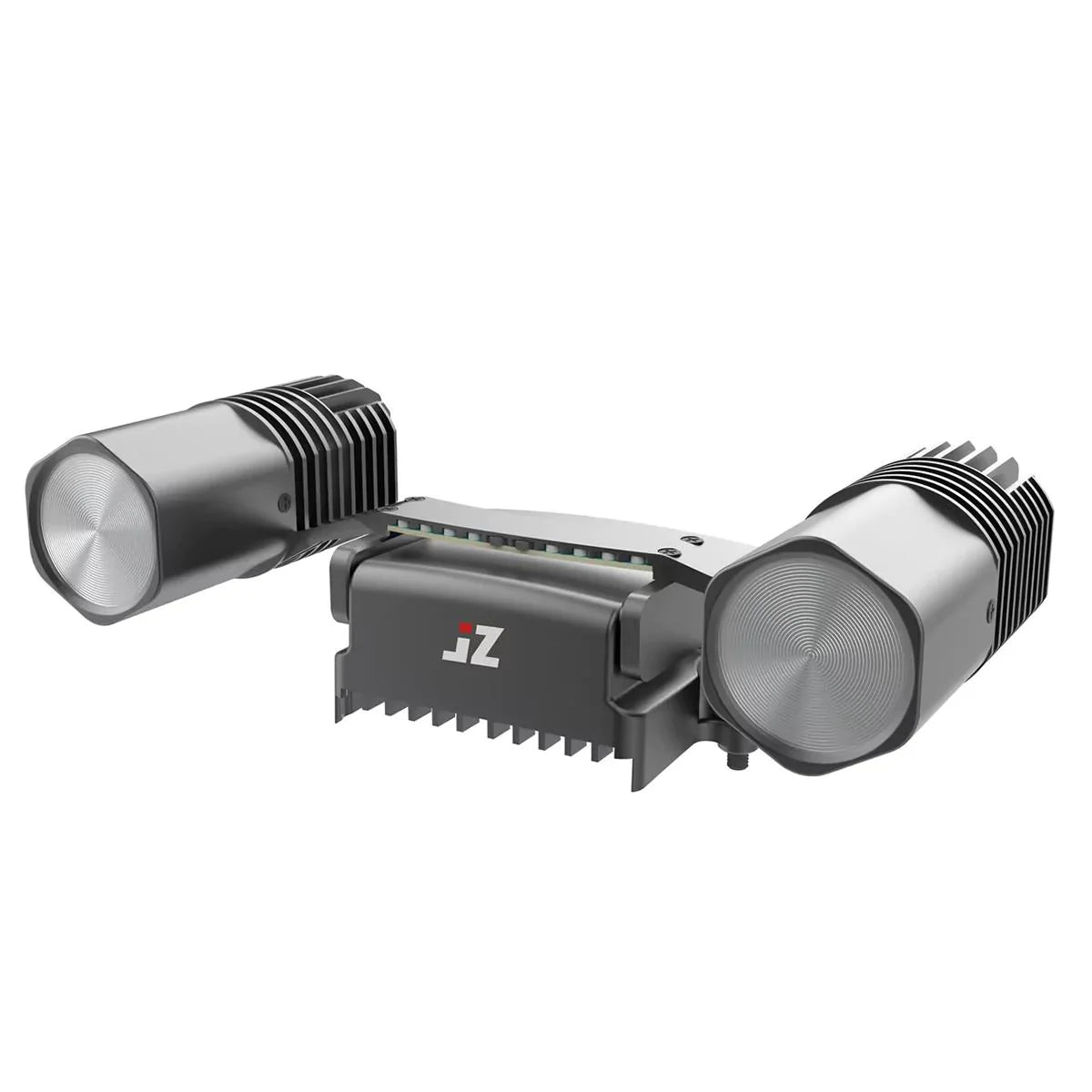

The JZ T30 Matrix Lamp is a compact, high-intensity spotlight payload engineered for the DJI Mavic 3 Enterprise and Mavic 3 Thermal drones. Weighing just 114 grams, this 30 W LED lighting system provides powerful illumination for public safety, search and rescue, and inspection missions in low-light environments. Its 14° concentrated beam delivers up to 24 lux at 50 m and maintains effective brightness up to 150 m, ensuring exceptional visibility for aerial operations at night or in challenging conditions.



Featuring a single-axis stabilized gimbal, the T30 maintains stable lighting linked directly to the drone’s camera gimbal for synchronized targeting and precision control. Fully integrated with DJI Pilot 2, operators can remotely adjust brightness, strobe frequency, and gimbal position in real time—without additional third-party apps. With IP4X-rated protection, plug-and-play installation, and multiple lighting modes (steady, flash, and burst), the JZ T30 is a professional-grade lighting payload built to enhance every mission.
Quantity

  • Product Highlights

  • User Manual

  • Product Specs

30W High-Intensity Illumination

Provides exceptional visibility with up to 24 lux at 50 meters and an effective range of 150 meters, perfect for night operations and low-light missions.

14° Focused Beam Angle

Delivers precise, concentrated lighting for inspections, rescue operations, and targeted search missions without light diffusion.

Stabilized Single-Axis Gimbal

The motorized single-axis gimbal maintains stable, synchronized lighting that follows the drone’s camera movement for pinpoint illumination.

Seamless DJI Integration

Fully compatible with DJI Mavic 3 Enterprise and Mavic 3 Thermal, supporting real-time brightness, strobe, and gimbal control via DJI Pilot 2.

Ultra-Lightweight Design

At only 114 g, the T30 minimizes flight impact while maximizing brightness—ideal for extended flight times and agile maneuverability.

All-Weather Durability

Built with an IP4X dust-resistant housing and tested for reliable operation from −10 °C to 50 °C, ensuring performance in diverse environments.

Quick-Release Mounting

Features a DJI SDK quick-screw interface, enabling fast installation and removal to adapt between lighting and other payloads in seconds.

Electrical Interface: DJI SDK
Size: 132 × 43 × 64 mm
Weight: 114 g
Compatible Models: DJI Mavic 3 Enterprise / Mavic 3 Thermal
Protection Level: IP4X (Dust Resistant)
Maximum Power Consumption: 35 W
Installation: Quick-Release Screw Mount
Lighting Method: Combined Lighting
Lighting Angle: 14° Focused Beam
Gimbal: Single-Axis Stabilized Head
Operating Temperature: −10 °C to +50 °C (14 °F to 122 °F)
Storage Temperature: −20 °C to +60 °C (−4 °F to 140 °F)

Lighting Performance

  • Distance: 50 m · 100 m · 150 m
  • Lighting Area: 113 m² · 471 m² · 1,063 m²
  • Center Illumination: 24 Lux @ 50 m · 5 Lux @ 100 m · 2.5 Lux @ 150 m

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

Which drones are compatible with the JZ T30 Matrix Lamp?

A: The T30 is compatible with DJI Mavic 3 Enterprise, Mavic 3 Thermal, and Matrice 350 RTK (via adapter).

What is the effective lighting range of the T30?

A: The spotlight provides clear illumination up to 150 m, delivering 24 Lux at 50 m, 5 Lux at 100 m, and 2.5 Lux at 150 m.

Can I control the T30 through the DJI Pilot 2 app?

A: Yes, the T30 integrates seamlessly with DJI Pilot 2, allowing you to adjust brightness, flash frequency, and gimbal angle in real time.

Does the T30 affect drone flight performance?

A: At only 114 g, the T30’s ultra-lightweight design minimizes impact on flight time and maneuverability.

Is the T30 weather resistant?

A: Yes, it’s rated IP4X, offering protection from dust and light environmental exposure.

Can the T30 operate in cold or hot weather?

A: The lamp functions reliably between −10 °C and +50 °C (14 °F – 122 °F).

What missions is the T30 ideal for?

A: The T30 excels in public safety, search and rescue, law enforcement, emergency response, and industrial inspection tasks.
