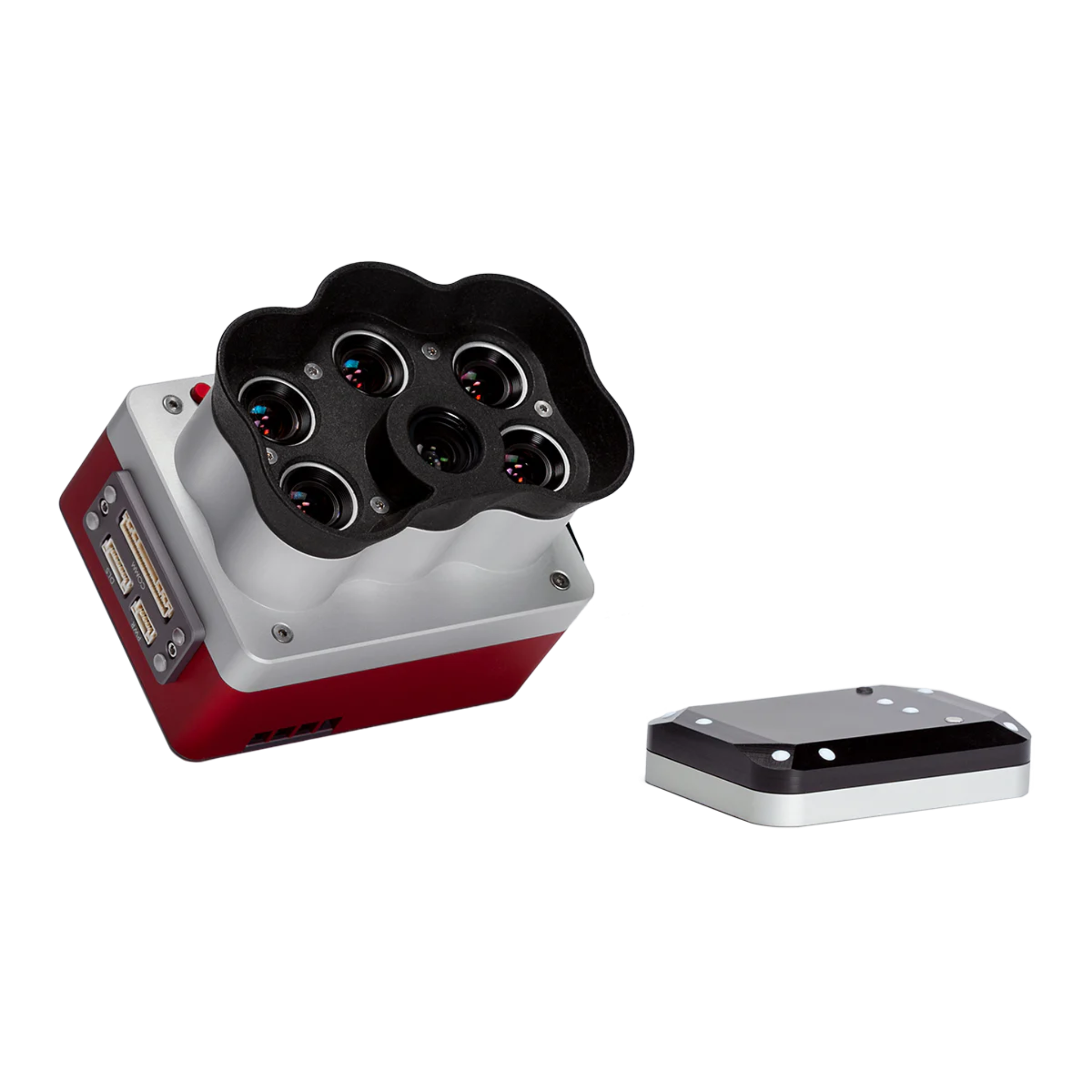

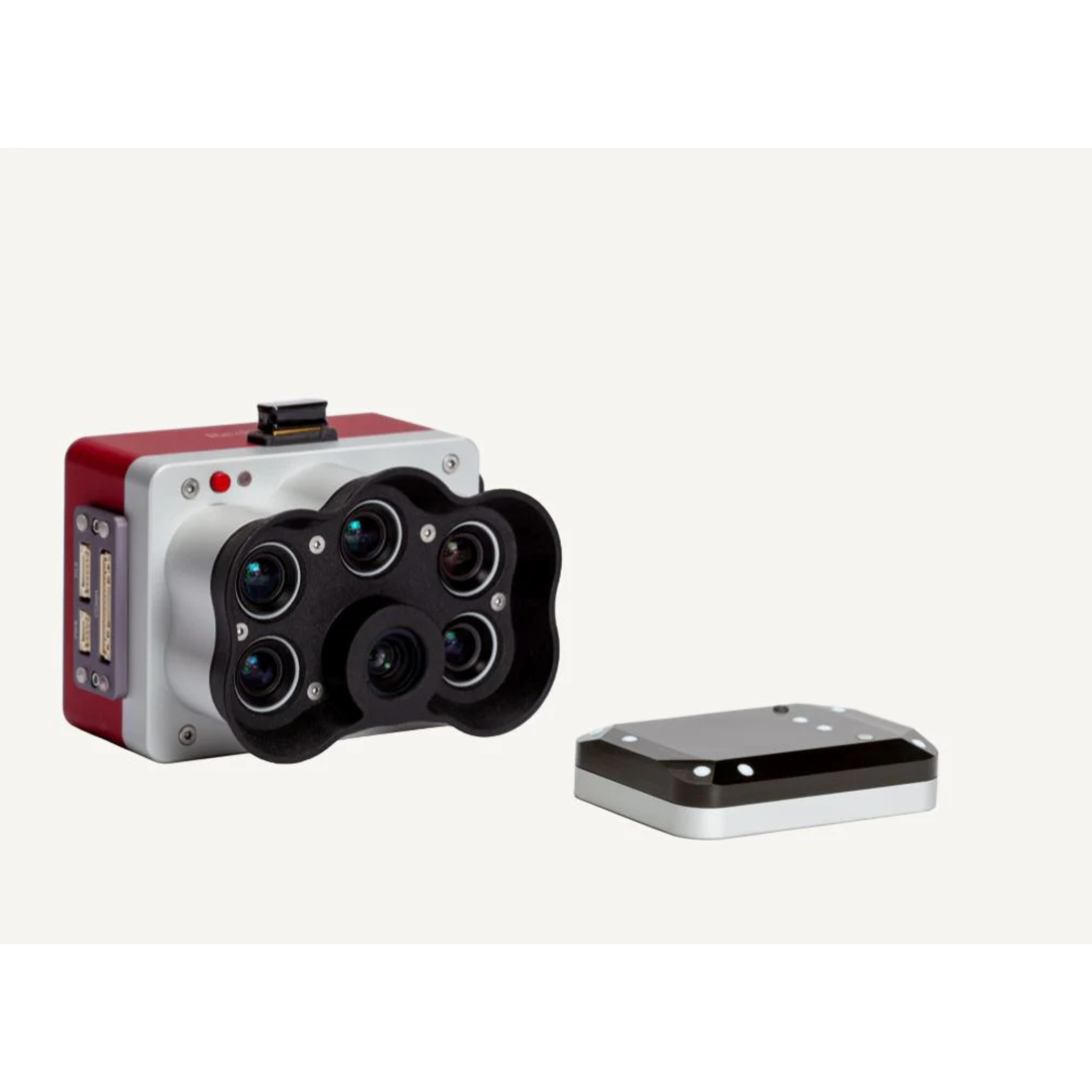

Micasense RedEdge-P Multispectral Camera

Description:

Introducing the RedEdge-P, a state-of-the-art solution for capturing high-resolution RGB and multispectral data. Building on the trusted legacy of the RedEdge series, the RedEdge-P features a high-resolution panchromatic band that delivers pan-sharpened output resolutions of up to 2cm at 60m, doubling the ground resolution of the RedEdge-MX. This all-in-one camera captures calibrated multispectral and RGB imagery with an optimized field of view (FOV) and capture rate, ensuring efficient and accurate flights.

Key Features:

• High-Resolution Panchromatic Band: Achieves 2cm resolution at 60m, offering twice the ground resolution of the RedEdge-MX.
• Seamless Integration: Combines high-resolution RGB and synchronized multispectral imaging for pixel-aligned outputs at unmatched resolutions.
• Efficient and Reliable: Maintains the efficiency and reliability synonymous with the RedEdge series, making it ideal for professional use.
• Open Data Processing: Raw data from the RedEdge-P is compatible with industry-standard software, ensuring flexibility and ease of use.
• Optimized Field of View: Designed for efficient flights with an optimized FOV and capture rate.

The RedEdge-P is the ultimate solution for professionals seeking high-quality, pixel-aligned multispectral and RGB imagery, making it an essential tool for precision agriculture, environmental monitoring, and more.

Specs:

Weight: 300g (10.6 oz.) including RedEdge-P + DLS 2

Dimensions: 8.2 x 6.2 x 5.4 cm (3.2in x 2.4in x 2.1in)

External Power: 7.0 V-25.2 V

Spectral Bands:

• Blue (475 nm center, 32 nm bandwidth)
• Green (560 nm center, 27 nm bandwidth)
• Red (668 nm center, 14 nm bandwidth)
• Red Edge (717 nm center, 12 nm bandwidth)
• Near-IR (842 nm center, 57 nm bandwidth)

RGB Output: 5.1 MP (global shutter, aligned with all bands)

Ground Sample Distance:

• 7.7cm per pixel (per MS band) at 120m AGL
• 3.98cm per pixel (panchromatic band) at 120m AGL

Capture Rate: 2-3 captures per second (raw DNG)

Interfaces:

• 4 GPIO (Trigger input, top of frame out, 1 PPS out, host button)
• USB 2.0 port (for WiFi, serial, 10/100/1000 ethernet, and CF Express Storage)

Field of View:

• 49.6° HFOV x 38.3° VFOV (MS)
• 44.5° HFOV x 37.7° VFOV (PAN)

Triggering Options: Timer mode, overlap mode, external trigger mode (PWM, GPIO, serial and Ethernet options), manual capture mode

Operating Temperature:

• 0-40°C ambient (no airflow)
• 0-50°C ambient (with airflow >0.5m/s)

Note: Post-processing required for optimal RGB output.

Product Video:

What's in the Box:

RedEdge-P sensor

DLS 2 with embedded GPS

Calibrated Reflectance Panel (CRP 2)

USB WiFi dongle

Lens cover

Necessary integration cables

Assorted mounting hardware

CFexpress card

CFexpress card reader

Hard Carrying Case

Quick StartGuide
