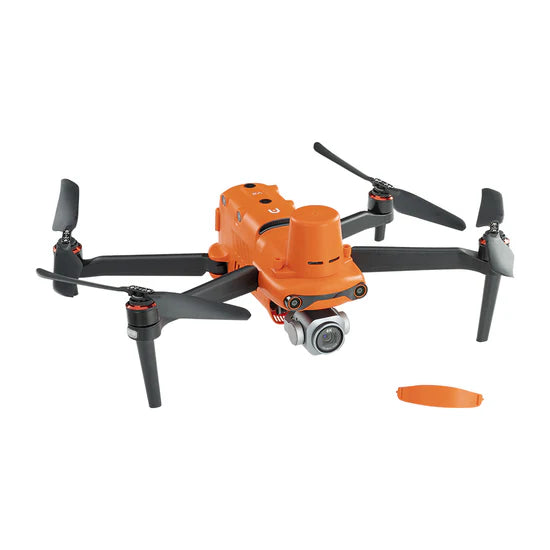

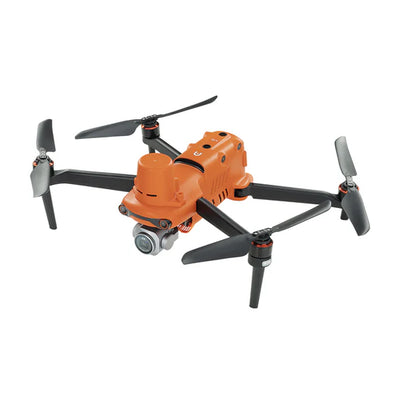

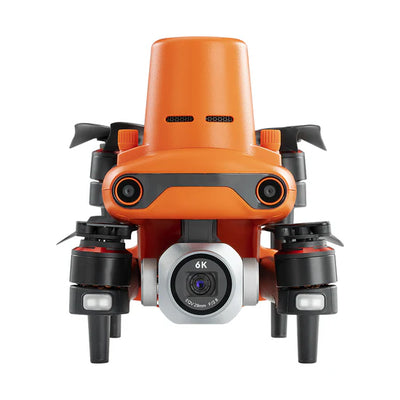

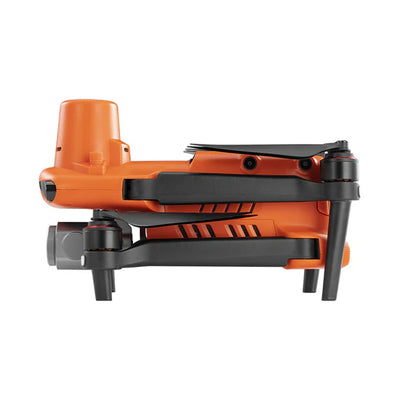

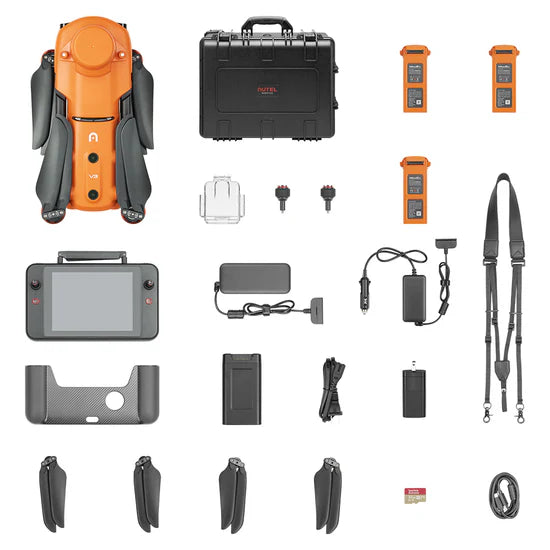

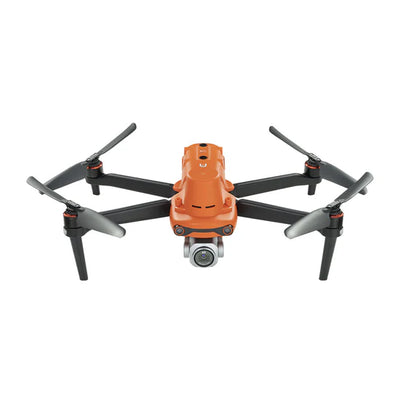

Autel Robotics EVO II Pro 6K RTK Rugged Bundle V3 Drone

Why Choose the EVO II Pro 6K RTK for Surveying & Mapping

The EVO II Pro 6K RTK closes the precision gap between consumer mapping drones and enterprise platforms that cost twice as much. Its RTK module delivers 1cm horizontal and 1.5cm vertical absolute accuracy — on par with the DJI Matrice 300 RTK setup at a fraction of the cost. The 1-inch CMOS sensor captures 6K imagery with enough resolution for GSD under 2cm at standard mapping altitudes.

Where the EVO II Pro 6K RTK differentiates itself is durability. Level 8 wind resistance (39 mph) means survey flights can continue when conditions would ground a Phantom 4 RTK or DJI Mavic 3 Enterprise. No geofencing restrictions mean operators control launch authority — not the manufacturer's software servers.

Full Specifications

Which EVO II RTK Is Right for You?

Choose the Pro 6K RTK for high-resolution visual mapping and photogrammetry. Choose the Dual 640T RTK if thermal imaging is a core mission requirement.

Top Use Cases

Land Surveying & GCP-Free Mapping

RTK mode with network corrections (4G/5G NTRIP) achieves absolute accuracy under 5cm without placing a single ground control point. PPK mode logs raw GNSS data for post-processing in environments where real-time network connectivity isn't available.

Construction Progress & Volume Tracking

Weekly photogrammetric surveys with the EVO II Pro 6K RTK feed directly into DroneDeploy, Pix4D, or Propeller Aero for volume comparisons, earthwork tracking, and as-built documentation with centimeter-level confidence.

Utility & Solar Farm Inspection

Level 8 wind resistance keeps the survey on schedule when afternoon thermal winds pick up over open terrain. 4× lossless zoom closes in on panel degradation, conductor wear, and insulator anomalies without a separate close-approach pass.

Frequently Asked Questions

What is the difference between RTK and PPK mode?

RTK applies GPS corrections in real time via a base station or network connection — position is accurate during the mission. PPK logs raw GNSS data and applies corrections during post-processing — useful when there's no network connectivity in the field. Both are supported by the EVO II Pro 6K RTK V3.

Does the drone require a base station?

The Autel A-RTK base station is supported. Alternatively, operators can use network RTK (NTRIP) via a 4G/5G connection from the Smart Controller V3 — eliminating the need to transport and set up a physical base station on most projects.

What RTK accuracy does this drone achieve?

1cm + 1ppm horizontal accuracy and 1.5cm + 1ppm vertical accuracy in RTK mode. Accuracy may vary in environments with multipath interference or poor satellite visibility.

Is the 32GB SD card sufficient for a full mapping mission?

For most surveys yes — a typical 100-acre mapping mission at 3cm GSD generates approximately 400–600 images totaling 3–6GB. The included 32GB card handles most single-flight missions comfortably.
