XAG P100 Pro Drone

Description:

The XAG P100 Pro Agricultural Drone is a state-of-the-art drone designed to revolutionize precision agriculture. Its innovative design allows for efficient spreading and precision spraying, making it an essential tool for modern farming. The drone's high-capacity battery, intelligent obstacle avoidance, and fully autonomous flight capabilities ensure maximum efficiency and safety during agricultural operations.

Key Features:

• Efficient Spreading: Capable of spreading up to 280 kg per battery charge with adjustable spreading width.
• Precision Spraying: Features a centrifugally atomized spraying system with droplet sizes ranging from 60-400 μm and a flow rate of 0.3-6 L/min.
• Smart Design: Detachable components for easy transportation and maintenance.
• Advanced Navigation: RTK centimeter-level navigation and dynamic radar for obstacle avoidance.
• Robust Build: IPX7 water resistance and durable construction for reliable performance in various conditions.

Features:

• Fully Autonomous Flight: Operate with a single tap via the XAG One app, including route planning and mission management.
• Dynamic Radar: Provides real-time obstacle detection within 40 meters.
• High-Capacity Battery: 962 Wh battery with rapid charging capabilities.
• Smart Control: Dual-link communication, advanced control algorithms, and real-time monitoring for precise operations.

Specs:

General:

• Maximum Flight Altitude: 100 m (subject to local regulations)
• Control Range: Up to 2,000 m
• Maximum Flight Speed: 10 m/s

Spraying System:

• Droplet Size: 50-500 μm (adjustable)
• Flow Rate: 0.3-6 L/min
• Customization Levels: Very Coarse, Coarse, Medium, Fine, Very Fine, Extremely Fine

Spreading System:

• Capacity: Up to 280 kg per battery charge
• Spreading Width: Adjustable

Battery:

• Type: High-Capacity 962 Wh
• Charging: Rapid charging capabilities

Safety and Navigation:

• Obstacle Avoidance: Dynamic radar with real-time detection within 40 meters
• Navigation: RTK centimeter-level accuracy
• Build: IPX7 water resistance

Control:

• Autonomous Flight: Fully autonomous with XAG One app
• Communication: Dual-link for real-time monitoring

Manuals:

XAG P100 User Manual

FAQ:

How is the flight performance of the P100?

• Maximum Flight Height: 30 m (Interim Provisions on UAV Flight Management (draft for comment)).
• Maximum Flight Speed: 13.8 m/s.
• Hovering Time:
  • 17 min (no load @ 20000 mAh x 2, takeoff weight: 48 kg)
  • 7 min (full load @ 20000 mAh x 2, takeoff weight: 88 kg)
  • Tested near sea level with wind speed < 3 m/s.

How efficient is the P100?

• Spreading Efficiency: 280 kg urea per battery charge (2 batteries) in 22 minutes.
  • Data from field tests with specific parameters and may vary with conditions.

What are the advantages of P100 compared with P40 and V40?

1. Granule Container Capacity: Increased from 25 L to 60 L.
2. Discharge Efficiency: Increased from 40 kg/min to 80 kg/min.
3. Smart Liquid Tank: Increased from 16 L (V40) / 20 L (P40) to 40 L.
4. Separable Design: Easier functional switch, transportation, and maintenance.

What is the advantage of P100's separable design?

1. Reduces handling weight for easier functional switch, transportation, and maintenance.
2. Features double safe lock and tri-proof plug for quick detaching and installation.

How to achieve the high-efficiency performance of P100?

• Motor: Innovative dual heat dissipation design extends motor life.
• Integral FOC ESCs: Adjusts power accurately, reducing consumption and improving heat dissipation.

What is the protective rating of the P100?

• IPX7 Water Resistance: Handles harsh operational environments.

What is the safety distance for personnel when the P100 takes off and lands?

• Minimum Distance: At least 10 meters.

What’s in the Box:

• P100 Drone with RevoSpray2 Sprayer Module

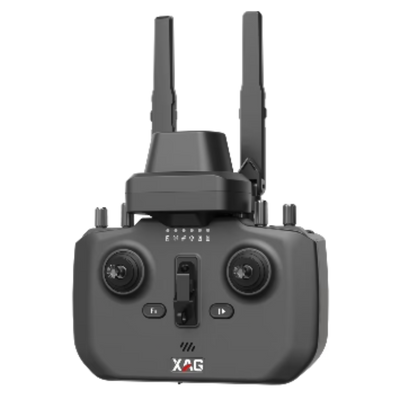

• ARC 3 Pro Handheld Controller
• 8x B1396S 960Wh Li-polymer Battery
• 2x CM13600 Super Charger
• Hydro Coolling water tank
