CZI GL60 Mini
Product Description:

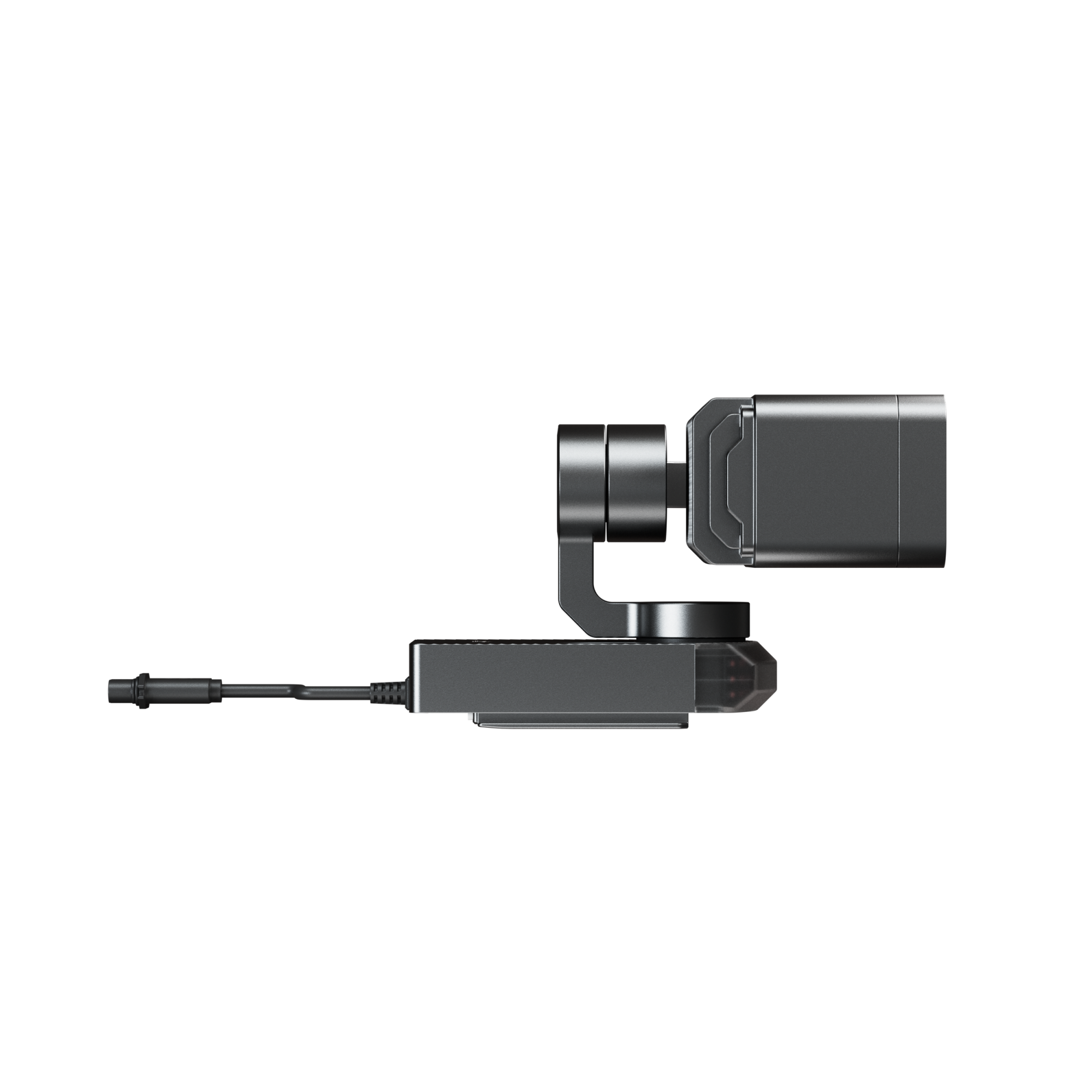

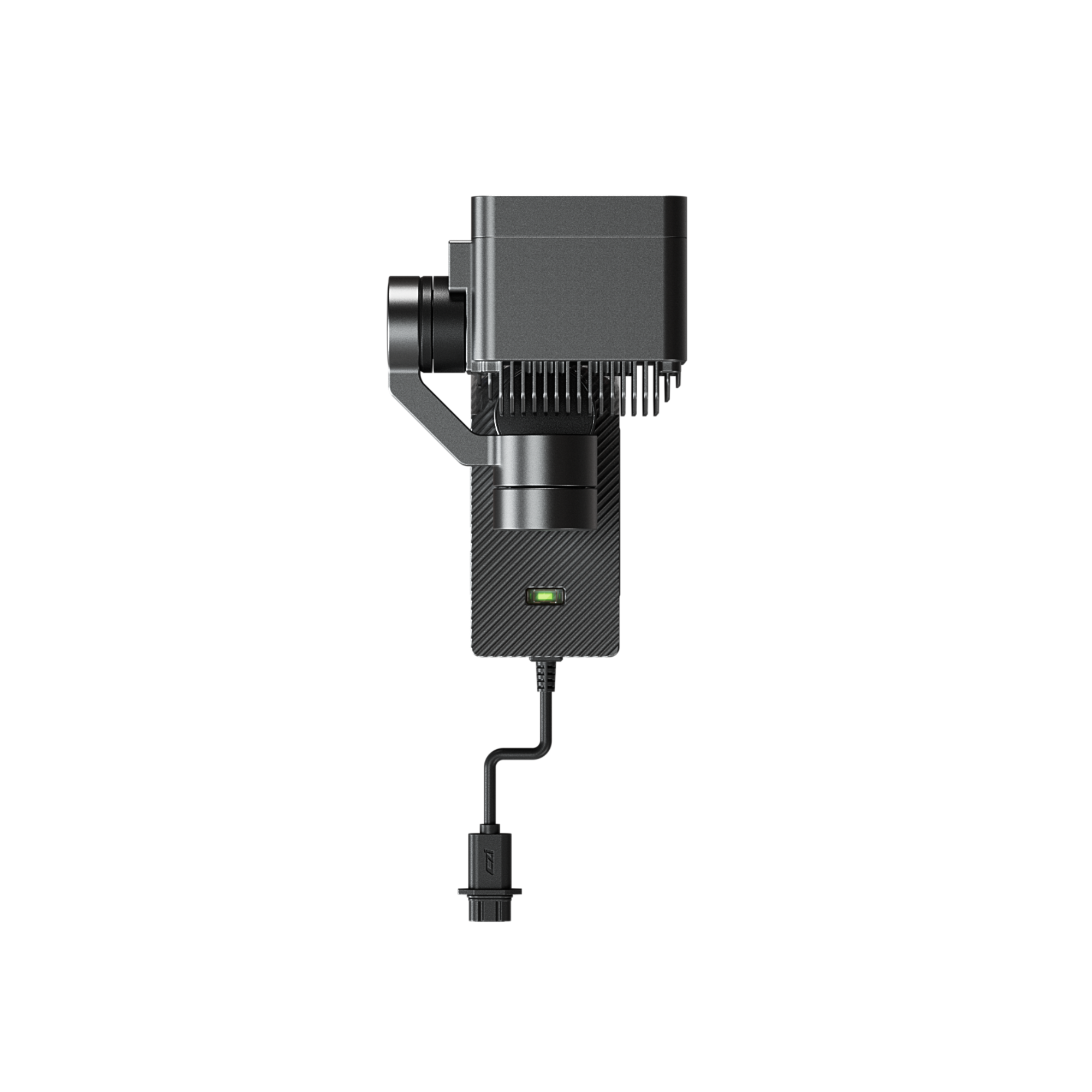

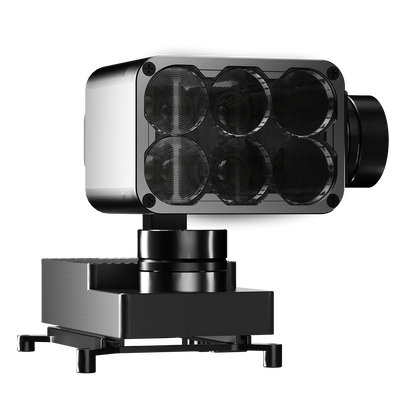

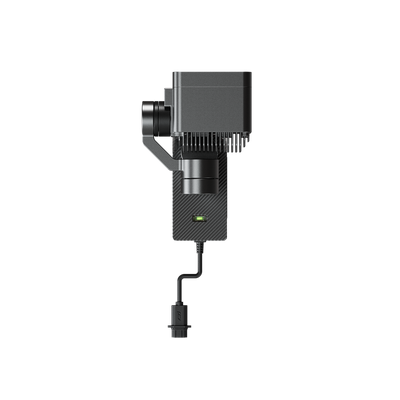

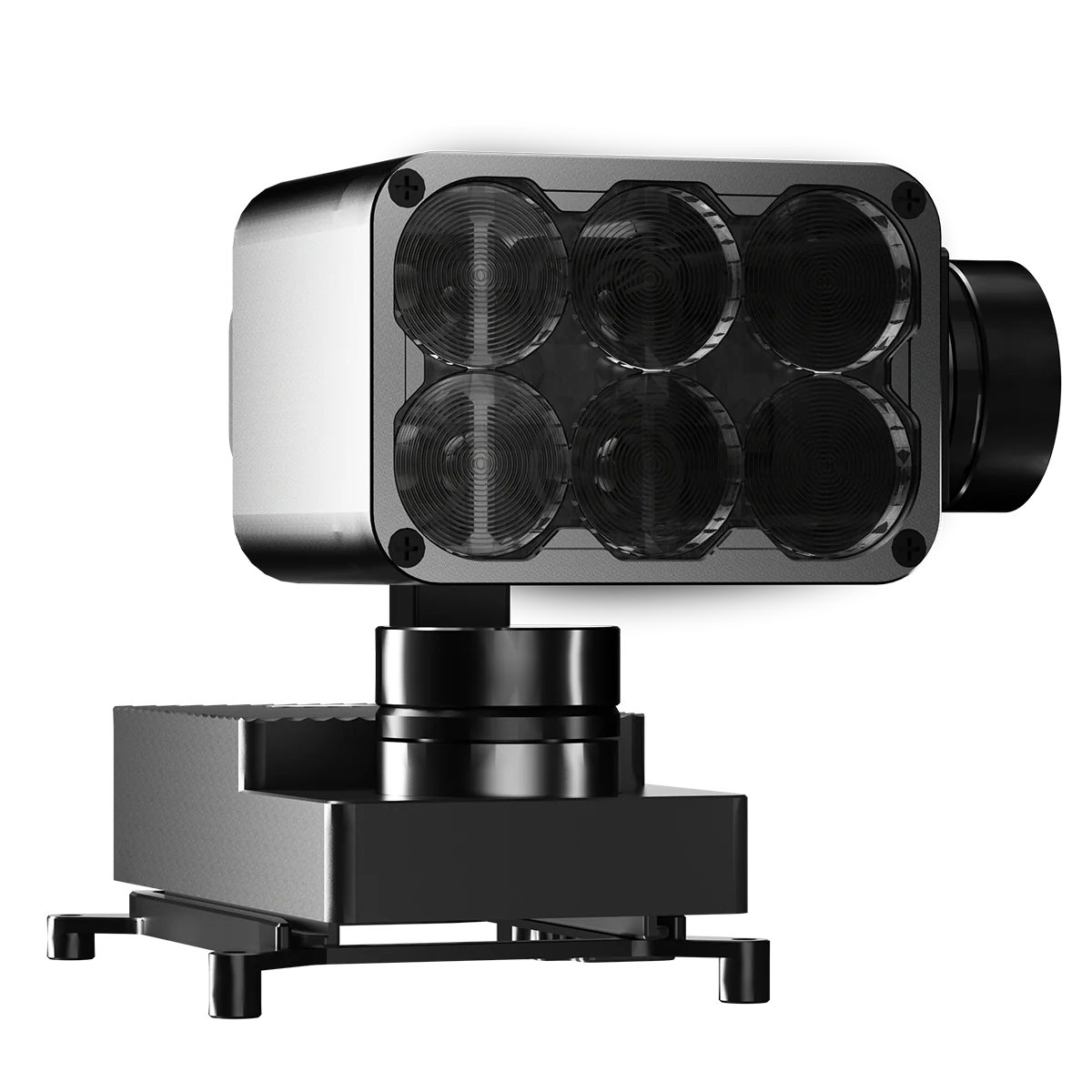

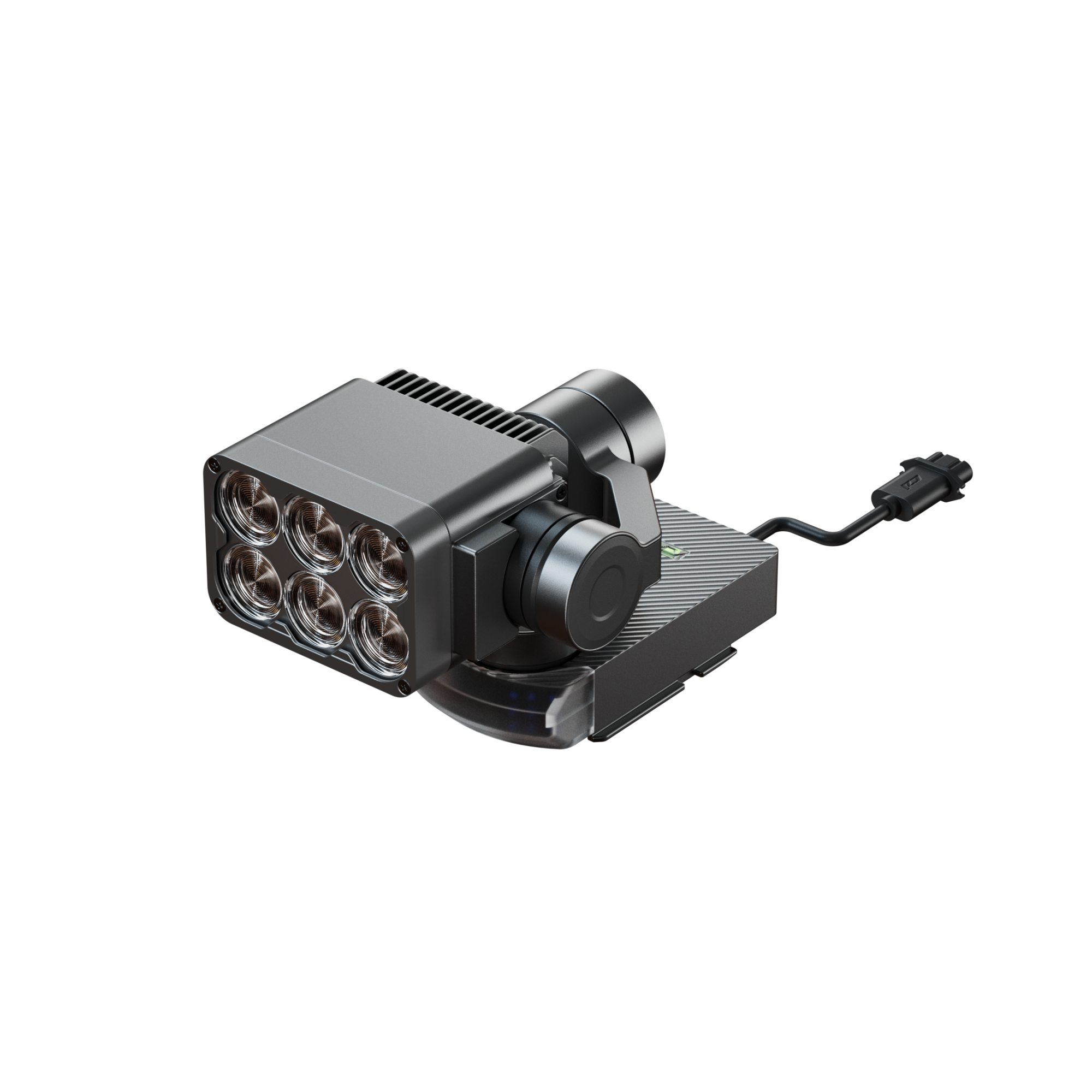

The CZI GL60 Mini is a compact, high-performance gimbal-mounted searchlight engineered for seamless integration with the DJI Matrice 30 Series. Despite its lightweight form factor, this precision lighting payload delivers powerful illumination and advanced gimbal control for critical missions including search and rescue, public safety, and night inspections.
Built with a stabilized 3-axis gimbal, the GL60 Mini offers wide-range rotation and intelligent target tracking via AI Follow. With a luminous flux of 6000 lumens, a narrow 13° beam angle, and an effective illumination range of up to 150 meters, it delivers concentrated brightness and wide-area coverage from the air.
Key Features:
- Designed for DJI Matrice 30 Series via DJI OSDK interface
- 3-Axis Mechanical Gimbal for stabilized directional control
- AI Follow Functionality for intelligent target illumination
- Illumination Distance up to 150 m with focused 13° FOV
- High Luminous Output: 6000 lm ± 3%
- Compact and Lightweight: Weighs only 240 g ± 3%
-
Wide Gimbal Rotation:
- Pitch: -70° to +90°
- Yaw: ±125°
- Roll: ±125°
- Durable for Field Use: Operates in -20°C to +50°C environments
- Power-Efficient Design: 70 W total power consumption
Optimized for:
- Nighttime search and rescue
- Law enforcement & public safety patrols
- Utility & infrastructure inspections
- Emergency response support
This mini spotlight is a robust lighting solution for drone pilots who require portable, stable, and high-intensity illumination for operations in the dark or in low-visibility conditions.
Specifications
Electrical Interface: DJI OSDK
Weight: 240 g (Technically)
Size: L158 × W87 × H82 mm
Total Power: 65 W
LED Power: 60 W
Supply Voltage: 24 V
Luminous Flux: 7000 lm ± 3% (Technically)
FOV: 13°
Illumination Distance: 150 / 100 / 50 m
Spot Diameter: 34 / 22.8 / 11.4 m
Illumination Area: 917 / 407 / 102 m²
Central Illuminance: 7 / 16 / 60 Lux (Technically)
Gimbal Rotation and Design Range
Range of Rotation:
- Pitch: -70° ~ +90° (Technically)
- Horizontal: ±125° (Technically)
Design Range of Gimbal:
- Pitch: -70° ~ +90° (Technically)
- Horizontal: ±125° (Technically)
- Roll: ±125° (Technically)
Operating Temperature
-20°C ~ +50°C (Technically)
