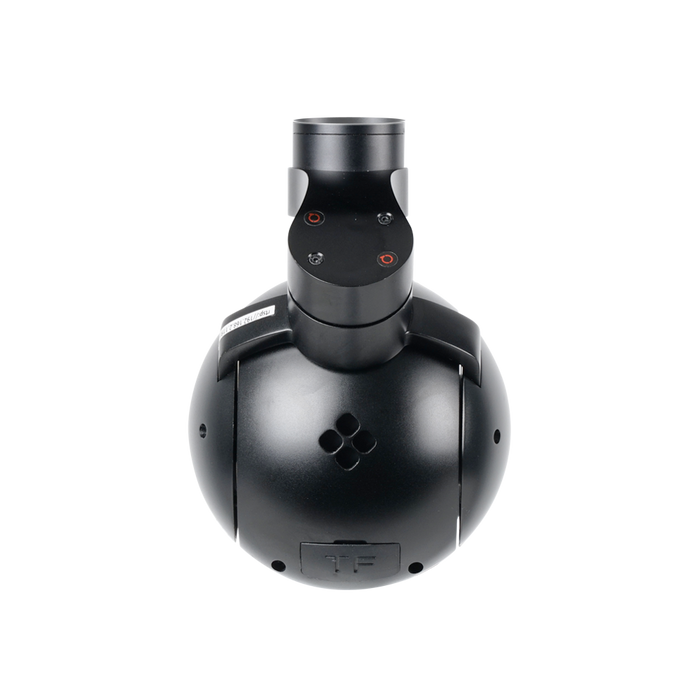

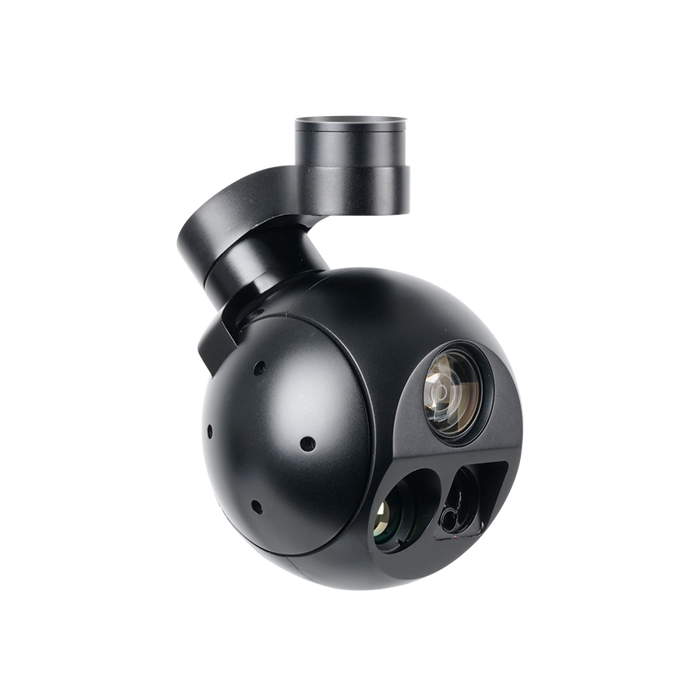

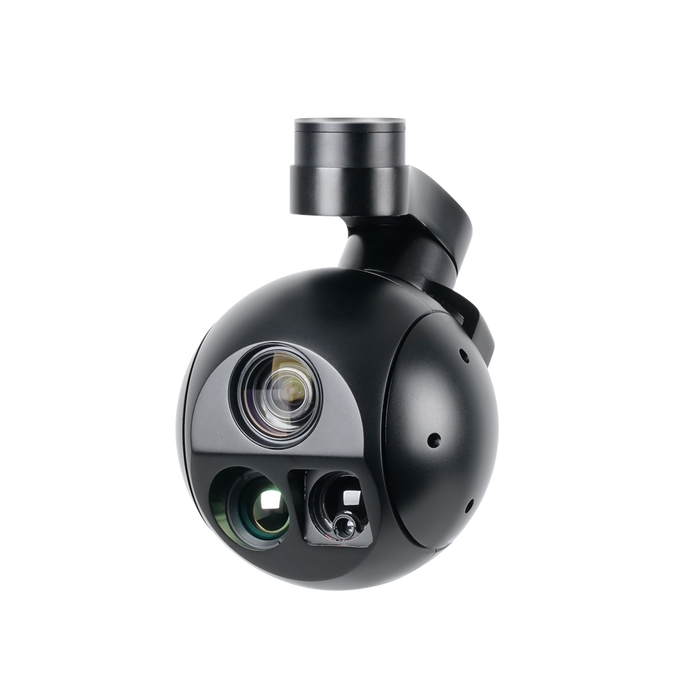

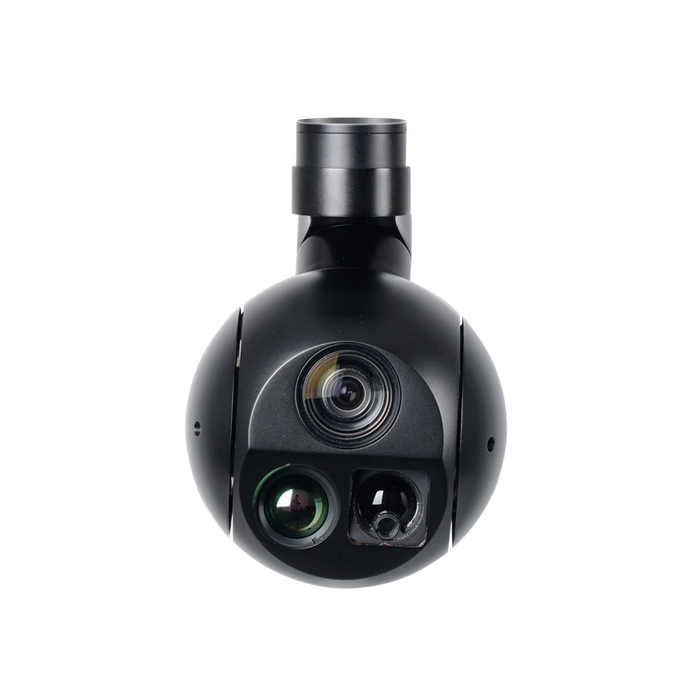

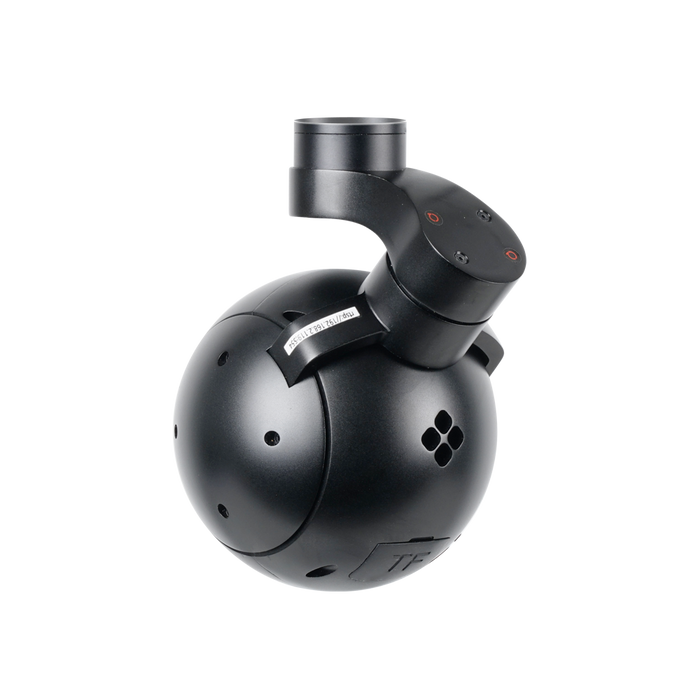

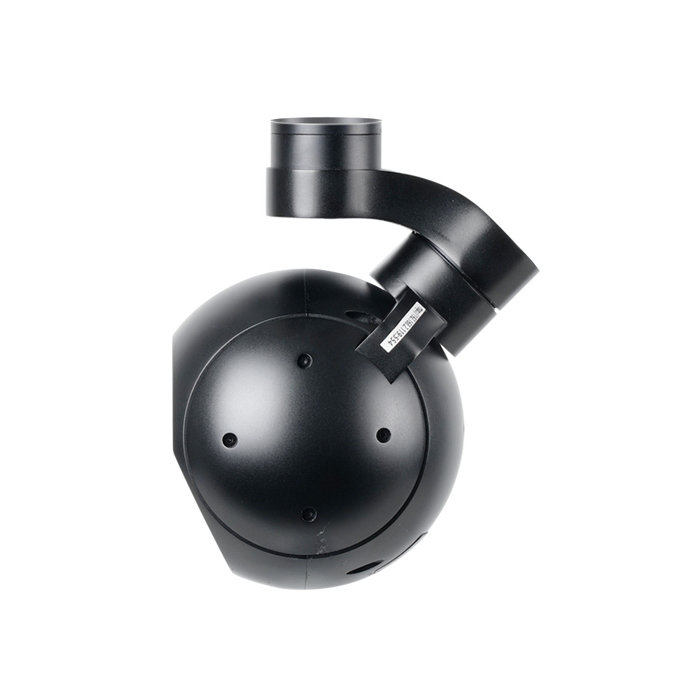

ViewPro A10TR Pro Camera

When visual awareness and thermal detection aren't enough on their own, the A10TR Pro adds the third dimension that matters most in the field: exact distance. Its integrated 1,500m laser rangefinder feeds slant-range data directly to the gimbal's onboard processor, enabling accurate geo-location of targets on the ground without a separate ranging device or complex multi-sensor fusion setup. That capability sits alongside the same high-performance Sony EO camera and 640×512 thermal imager found in the A10T Pro — all stabilized by a 3-axis gimbal and driven by onboard AI object tracking.

Specifications

What the A10TR Pro Is Used For

Tactical Law Enforcement and SWAT Operations

When a tactical commander needs to know exactly how far a suspect is from a building entrance, or precisely where a vehicle is relative to a perimeter, the A10TR Pro's 1,500m laser rangefinder delivers that answer with a single trigger pull. Combined with the drone's GPS position and gimbal angles, the system calculates a ground coordinate that can be fed into a command mapping platform or relayed verbally to ground units. The onboard AI tracking holds the target in frame automatically so the operator can focus on commanding the response rather than managing the camera.

Search and Rescue with Target Geo-Location

The A10TR Pro is the natural choice for SAR missions where finding a subject is only half the challenge — getting an accurate grid coordinate to a rescue team quickly is the other half. Once the thermal imager detects a heat signature, the operator locks AI tracking onto the subject and fires the rangefinder to capture the slant range. Combined with the drone's onboard GPS and inertial data, this produces a reliable geo-location that can be radioed to a ground crew or dropped as a waypoint into mission planning software, cutting the time between detection and physical rescue.

Utility and Power Line Inspection

Transmission line inspections require crews to identify fault locations precisely enough that a ground vehicle can navigate directly to the site. The A10TR Pro's rangefinder measures the exact distance from the drone to a flagged conductor junction or insulator cluster, allowing the thermal anomaly to be logged with a position accurate enough for truck routing. The 640×512 thermal core resolves fine temperature differentials that indicate resistive heating, loose connections, or failing insulators, while the 16× thermal digital zoom and 10× EO optical zoom give inspectors a close look without the need to enter minimum approach distances.

Border Surveillance and Maritime Patrol

Knowing that a vessel or vehicle is present is valuable; knowing it is 840m bearing 273° from the drone's position is actionable. The A10TR Pro translates thermal detections into geo-referenced intercept data that can be shared with maritime patrol vessels or border agents on the ground in near real time. The 640×512 thermal resolution maintains detection performance over water at night, where EO sensors are limited by ambient light, and the broad 12–25V power range makes the payload easy to integrate on fixed-wing endurance platforms that carry large battery banks at higher voltages.

Critical Infrastructure and Site Security

Security teams protecting energy infrastructure, data centers, and government facilities use the A10TR Pro to establish layered awareness that goes beyond simple detection. The AI object recognition flags unauthorized entry while the rangefinder precisely locates intruders relative to facility landmarks — fence lines, equipment structures, or designated keep-out zones. This data feeds directly into security operations center software, enabling dispatch teams to vector response assets to exact positions rather than general grid areas, compressing response times significantly.

Frequently Asked Questions

What is the laser rangefinder range on the A10TR Pro?

The integrated laser rangefinder measures distances from a minimum of 3 meters to a maximum of 1,500 meters and is specified as effective on reflective surfaces — meaning it performs reliably on common real-world targets including vehicles, building facades, vegetation, and water when conditions permit. Range performance on non-cooperative or highly absorptive surfaces may be shorter, which is consistent with all pulsed laser rangefinders in this class. For most tactical and inspection applications, the 1,500m ceiling provides ample standoff margin.

How does the A10TR Pro differ from the A10T Pro?

Both payloads share the same Sony 1/3" CMOS EO camera delivering 1920×1080 at 10× optical zoom and a 640×512 thermal imaging core. The A10TR Pro adds one critical capability: an integrated 1,500m laser rangefinder that measures slant range to a designated target, enabling precise distance readout and ground coordinate calculation when combined with the drone's GPS and gimbal telemetry. This translates into an additional 120g of weight (≤550g versus 430g for the A10T Pro) and a $1,000 price premium ($5,499 versus $4,499). If your mission requires confirmed target geo-location or distance measurement, the A10TR Pro is the right choice. If thermal and EO awareness alone meet your requirements, the lighter A10T Pro is the more efficient platform.

Is the A10TR Pro compatible with DJI drones?

The A10TR Pro uses PWM, S.BUS, Viewlink, TCP, and UDP control interfaces, which are compatible with ArduPilot and PX4 flight controllers out of the box. It can be mounted on DJI Matrice airframes using a third-party bracket and communicates via the aircraft's auxiliary or companion computer ports rather than the DJI SkyPort or Payload SDK. This means it operates independently of DJI's gimbal management ecosystem — a straightforward setup for operators who are comfortable with serial or network-based payload integration. Contact our team if you need guidance on a specific airframe pairing.

What use cases is the A10TR Pro best for?

The A10TR Pro is best suited for any mission where precise target geo-location is operationally important — not just detection. This includes tactical law enforcement and SWAT support where ground coordinates must be relayed quickly, search and rescue operations where a found subject needs to be located precisely enough for ground team navigation, utility and transmission line inspection where fault positions must be documented for truck dispatch, and border or maritime surveillance where intercept vectors are needed rather than simple presence detection. If your workflow only requires visual and thermal awareness without ranging, the A10T Pro offers a lighter and more cost-effective alternative.

Does the A10TR Pro support thermal temperature measurement?

The A10TR Pro's thermal module provides a ±2°C temperature accuracy specification, indicating it supports calibrated temperature measurement rather than purely qualitative imagery. For confirmation of full radiometric capability — including pixel-level temperature data export, isotherm tools, and spot measurement — and for details on measurement range limits, contact our specialists before ordering. Configuration options can vary, and our team can verify the exact thermal measurement features available for your intended application and ensure the payload is configured correctly for your workflow.
