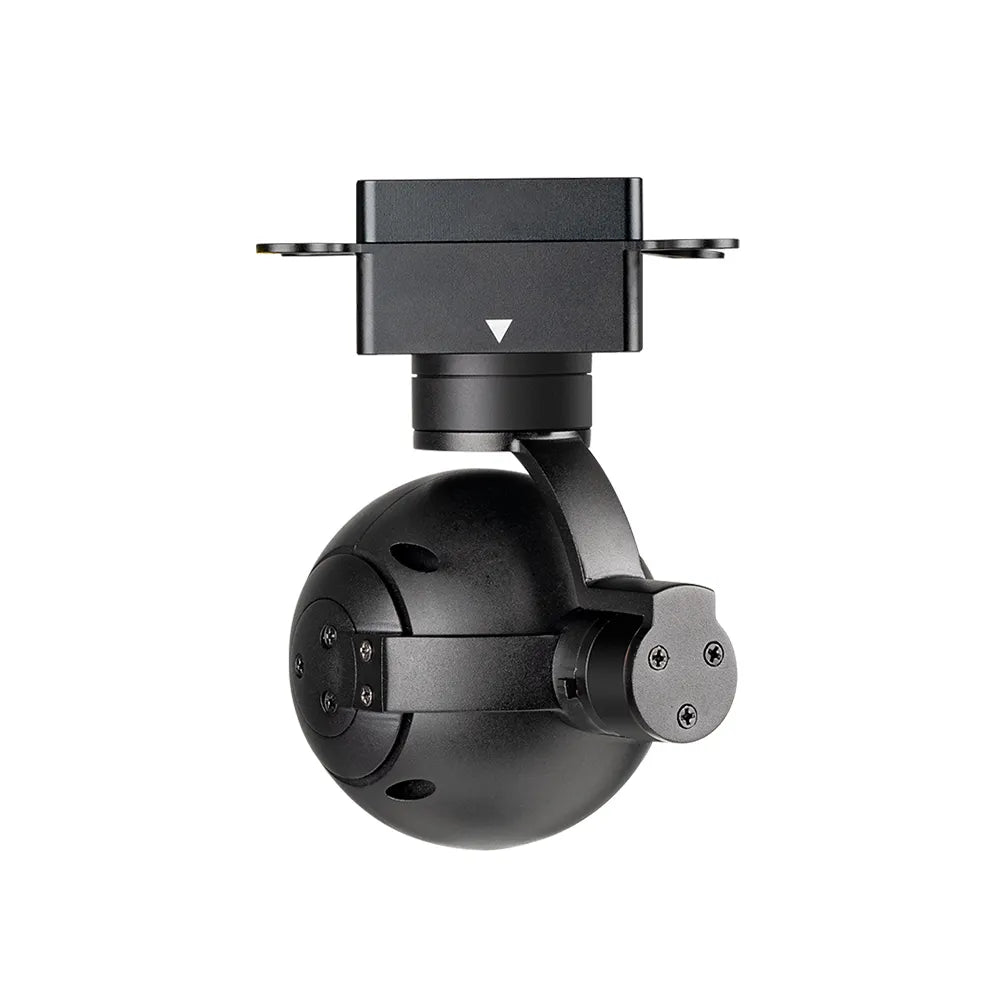

A609R Ultra-Compact Triple-Sensor 3-Axis EO/IR & LRF Gimbal Camera

The Viewpro A609R sets a new benchmark for compact multi-sensor drone payloads, packing a high-definition EO camera, 640×512 thermal imager, and a 1,200-meter laser rangefinder into a 235-gram housing that most platforms can carry without a payload penalty. At $2,699, it delivers capabilities previously found only in systems costing two to three times as much. Whether you're conducting search-and-rescue operations at night, performing infrastructure inspections, or running perimeter security patrols, the A609R gives your drone situational awareness that single-sensor payloads simply cannot match.

Specifications

What the A609R Is Used For

Search and Rescue Operations

When a missing person's life depends on what your drone can see, the A609R's 640×512 thermal imager with ≤40 mK sensitivity picks up human heat signatures that are invisible to standard cameras. The 379-meter human detection range means you can cover vast terrain quickly, while the laser rangefinder provides precise GPS coordinates for ground teams to act on. Simultaneous EO and thermal streaming means operators never have to choose between visual detail and thermal awareness.

Critical Infrastructure Inspection

Power lines, pipelines, and communication towers all benefit from the A609R's ability to combine thermal anomaly detection with high-resolution EO imagery in one flight. Overheating equipment shows up clearly on the thermal channel while the EO camera captures the documentation-grade still frames your inspection reports require. The 1–12× digital zoom brings distant structural details into frame without repositioning the drone.

Perimeter Security and Surveillance

Fixed-site security operations demand detection at range, day or night, regardless of weather. The A609R's AI-driven human and vehicle detection automatically classifies and tracks multiple targets simultaneously, alerting operators before threats reach a perimeter. The 1,163-meter vehicle detection range and ±150° yaw coverage make it practical for wide-area monitoring from a single loiter point.

Precision Mapping and Geolocation

The integrated 905nm laser rangefinder measures distances from 5 to 1,200 meters with ±1-meter accuracy, enabling georeferenced target coordinates to be generated directly from the payload. Combined with ArduPilot or PX4 telemetry, the A609R can feed target positions into mission planning software in real time — a capability that previously required dedicated laser-equipped pods at significantly greater cost and weight.

Firefighting and Disaster Response

The A609R's −20°C to +60°C operating range and rugged 3-axis gimbal keep imagery stable in the rotor wash and turbulence common around active fires and disaster zones. Thermal imaging cuts through smoke to reveal hotspots and structural integrity, while the EO feed supports safe navigation. First responders get actionable intelligence from a single lightweight payload rather than deploying multiple specialized aircraft.

Frequently Asked Questions

What drones is the A609R compatible with?

The A609R natively supports ArduPilot and PX4 flight controllers via TTL, S.BUS, TCP, and UDP interfaces, making it compatible with a wide range of custom-built and commercially available platforms running those firmware stacks. It also mounts externally on DJI Matrice series drones (including the Matrice 300, 350, and 30 series) using third-party brackets. Note that the A609R does not use DJI SkyPort and therefore does not appear in the DJI payload manager — power and data connections are handled independently of the DJI ecosystem.

Does the A609R include a laser rangefinder?

Yes. The A609R integrates a 905nm laser rangefinder capable of measuring distances from 5 to 1,200 meters with ±1-meter accuracy. This is built directly into the 235g payload housing — no separate pod or external module is required. Range data is output alongside gimbal telemetry, enabling downstream systems to calculate precise target coordinates when fused with GPS and altitude data.

Is the A609R compatible with DJI drones?

The A609R can be physically mounted on DJI Matrice series aircraft using third-party brackets, and it draws power independently from the drone's battery or an external power rail. However, it does not connect via DJI SkyPort — it will not appear as a recognized payload in DJI Pilot 2 or DJI FlightHub. Gimbal control and video downlink are handled through the A609R's own interfaces (S.BUS for control, analog or digital video output for streaming), which operators typically route through an onboard companion computer or video transmitter.

What is the thermal detection range of the A609R?

Using the 640×512 thermal sensor with ≤40 mK sensitivity, the A609R can detect a human-sized heat signature at up to 379 meters and a vehicle-sized target at up to 1,163 meters. These figures represent detection — the point at which the system can identify that a heat-emitting object is present. Recognition (classifying what the object is) and identification (confirming identity) occur at closer ranges, consistent with standard STANAG 4347 range-performance methodology.

Does the A609R support radiometric temperature measurement?

The A609R's thermal imager is optimized for detection and tracking rather than radiometric temperature measurement. It provides high-sensitivity thermal imagery with NETD ≤40 mK, which is well-suited to identifying heat anomalies and tracking warm targets, but it does not output calibrated temperature values (degrees Celsius or Fahrenheit) per pixel. Operators requiring absolute temperature measurement for applications like solar panel inspection or equipment maintenance should consider a radiometric thermal payload. For search-and-rescue, security, and fire detection use cases, the A609R's detection-focused thermal performance is fully sufficient.
