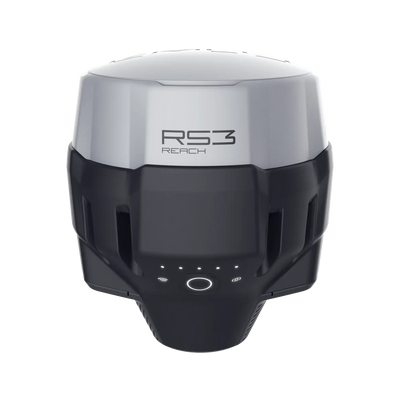

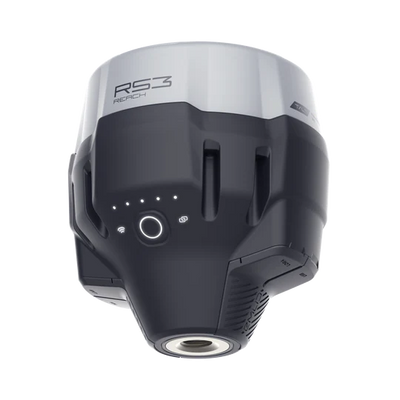

Emlid Reach RS3

Product Description:

The Emlid Reach RS3 is a cutting-edge multi-band RTK GNSS receiver built for professionals who require precise positioning in challenging environments. Equipped with IMU-based tilt compensation, it enables centimeter-level accuracy even when the survey pole is tilted up to 60°, eliminating the need for manual leveling.

Key Features:

• IMU Tilt Compensation: Achieve high-accuracy measurements with up to 60° tilt using a built-in 6DOF IMU sensor. The system is calibration-free and resistant to magnetic interference, ensuring accuracy even near metal structures.

• Multi-Band GNSS Support: Tracks signals from GPS, GLONASS, BeiDou, Galileo, and QZSS simultaneously, offering robust, reliable data in demanding environments.

• Rapid RTK Initialization: Establishes a fixed RTK solution in about 5 seconds, even in partially obstructed environments or when tilted.

• Extended Battery Life: Industrial-grade Li-Ion battery supports up to 22 hours of static logging or 18 hours of RTK operation with tilt compensation. Recharge via USB-C in the field with ease.

• Versatile Connectivity: Features built-in LTE modem, Wi-Fi, Bluetooth 4.0, LoRa (868/915 MHz), and UHF (450 MHz) radios. Supports correction formats such as NTRIP and RTCM3.

• Rugged and Weatherproof: Rated IP67 for water and dust resistance, and built to operate in extreme temperatures from -20°C to +65°C.

• Integrated Software Suite: Includes access to Emlid Flow for field data collection and Emlid Flow 360 for cloud-based project management and data export.

Product video:

Product Specs:

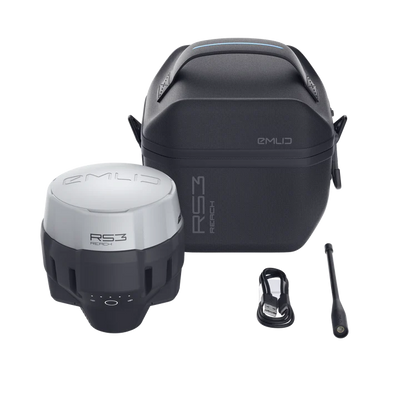

What's in the Box:

• Reach RS3

• Carrying case with a strap

• Radio antenna

• USB Type-C cable
